Description

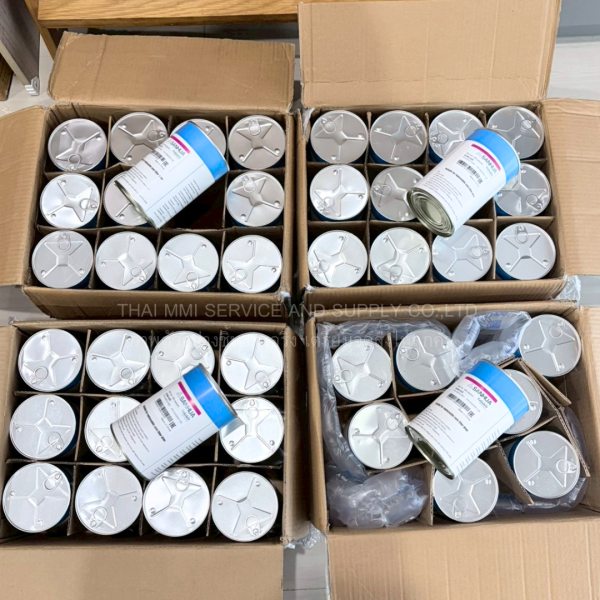

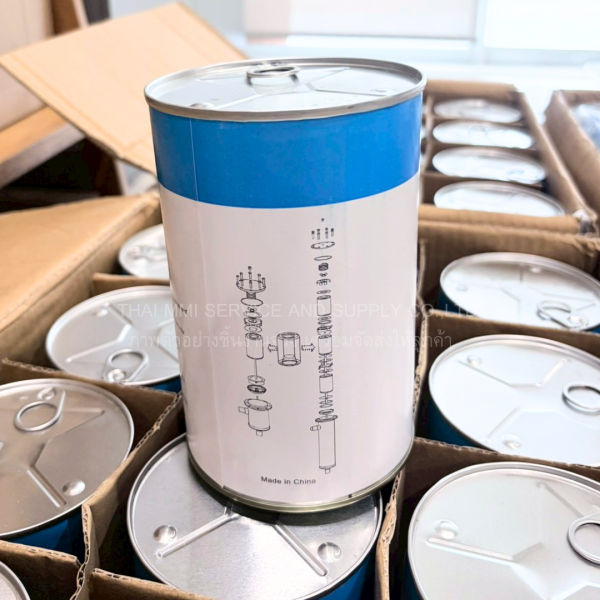

SANHUA – Filter Drier Core

Manufacturer:  SANHUA

Product:  Filter Drier Core

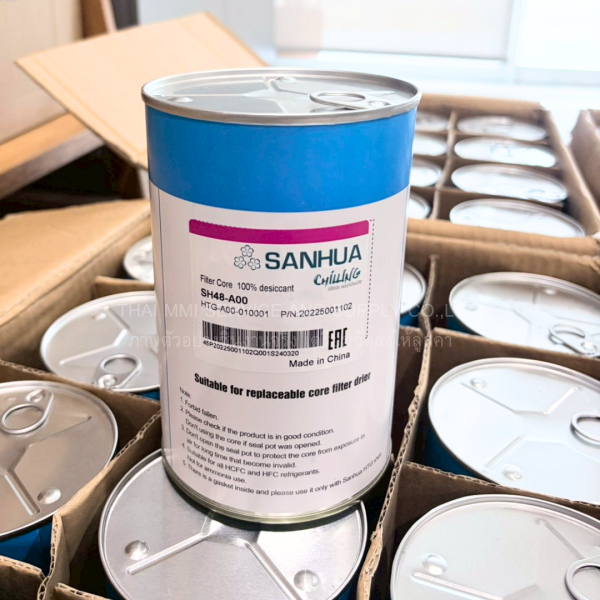

Part Number:  HTG-A00-010001



Sanhua Filter Drier with Replacable Core

HTG series filter drier with replaceable core is used in liquid line and gas line of refrigerating, freezing and air conditioning systems of fluorine refrigerant. It’s design allows for selecting different kinds of cores. It’s sealed by bottom cover for the convenience of removal and replacement of core from the bottom.



Technical Features

• High efficient in moisture absorption, impurity, acid removal
• Corrosion resistant painting surviving 500h salt spray test
• Connection type: Copper or steel tube solder
• SH-48A filter element
• Applicable refrigerant:  R22, R134a, R404A and R407C
• Application hybrid refrigerant:  R124, R125, R134a, R143a, R152a, R218, R23 and R32
• Great desiccation ability is applicable under wide range of temperature showing high pressure educability and excellent anti-shock performance. The even size of desiccant beads removes impuritiesneffectively and keep low pressure drop
• Composition of solid element:  3A Desiccant, active alumina for acid absorption
• SH-48Hfilter element
• Great water absorption performance, effctively filter out impurities 100% 3A desiccant can work with POE oil with strong moisture absorption capability
• App;ication refrigerant:  R134a, R 404a and R 407C etc.
• SH-48C filter element
• Great desiccation ability is applicable under wide range of temperature showing high pressure educability and excellent anti-shock performance. The even size of desiccant beads removes impurities effectively and keep low pressure drop
• Protecting compressor, Effectively absorb  acid and water; filter out impurities; extend the service life of compressor
• Application refrigerant:  R22, R134a, R404A and R507

General Specifications

• Applicable refrigerant:  HCFC, HFC and CFC
• Application medium temperature:  -50°C ~ +120°C  (-58°F ~ +248°F)
• Application ambient temperature:  -50°C ~ +80°C  (-58°F ~ +176°F)
• Maximum working pressure:  HTG-A48: PB = 35 bar, HTG-A96: PB = 35 bar, HTG-B44: PB = 35 bar, HTG-B92: PB = 28 bar
