Description

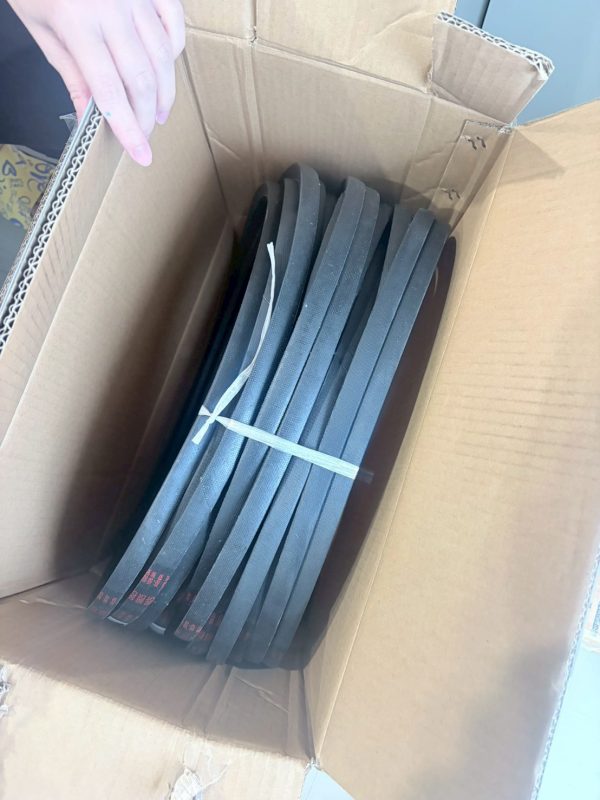

Martin V-belt SPB1450

Manufactured: Martin (Martin Sprocket & Gear)

Product Type: V-belt

Product Tag: SPB1450



General Information

The Martin SPB1450 is a metric narrow wedge V-belt featuring a 17 mm top width, an 8 mm depth, and a 1450 mm pitch length (effective length). It is engineered for heavy-duty industrial power transmission, fitting standard SPB profile sheaves/pulleys.



Materials Information

• Body: Chloroprene (Neoprene) Rubber
• Tensile Cords: Polyester
• Cover Wrap: Rubber-impregnated Cotton-Polyester Blend
• Weight: ~0.28 kg each / 0.62 lbs. each
• Packed: Single or bundled by application sleeve (varies by distributor)



Features

• Narrow wedge profile delivers higher power density than standard classical V-belts.
• Polyester tensile cords prevent belt stretch and absorb heavy shock loads.
• Chloroprene rubber body resists heat, ozone, and environmental aging.
• Rubber-impregnated fabric wrap protects against abrasive wear and extends service life.
• Static-conductive compound prevents dangerous electrical build-up in hazardous areas.
• Oil-resistant formulation protects the core components from degradation caused by lubricants.
• Uni-match design ensures matching lengths for multiple-belt drive installations.



Specification for 45-5060  (20 per case)

• Profile / Section: SPB (Narrow Wedge)
• Top Width: 17 mm
• Height / Thickness: 14 mm
• Pitch Length : 1450 mm
• Inside Length: Approx. 1422 mm to 1390 mm depending on standard offset calculations
• Outside Length: Approx. 1460 mm to 1472 mm
