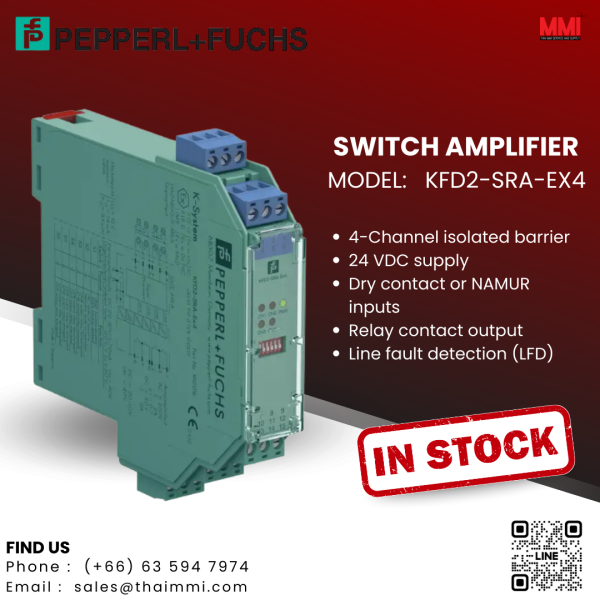

PEPPERL + FUCHS – SWITCH AMPLIFIER (KFD2-SRA-EX4)

Manufacturer: PEPPERL + FUCHS

Categories: Switch Amplifier

Model: KFD2-SRA-EX4



General Information: PEPPERL + FUCHS – SWITCH AMPLIFIER (KFD2-SRA-EX4)

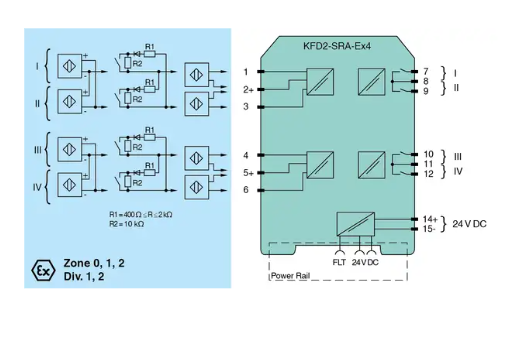

This isolated barrier is used for intrinsic safety applications. It transfers digital signals (NAMUR sensors/mechanical contacts) from a hazardous area to a safe area.

Each sensor or switch controls one form A normally open relay contact for the safe area load. A special 2:1 wiresaving technology is available on this isolator, reducing field wiring by 50%.

Switch S1 is used to enable or disable line fault detection of the field circuit. The 2:1 mode is selected with switch S2 while the remaining switches, S3 … S6, are used for reversing the normal output state of the relays.

A unique collective error messaging feature is available when used with the Power Rail system.



Product Features

1. 4-channel isolated barrier

2. 24V DC Supply (Power Rail)

3. Dry contact or NAMUR inputs

4. 50 % less wiring, 2:1 technology

5. Relay contact output

6. Line fault detection (LFD)

7. Reversible mode of operation
