Description

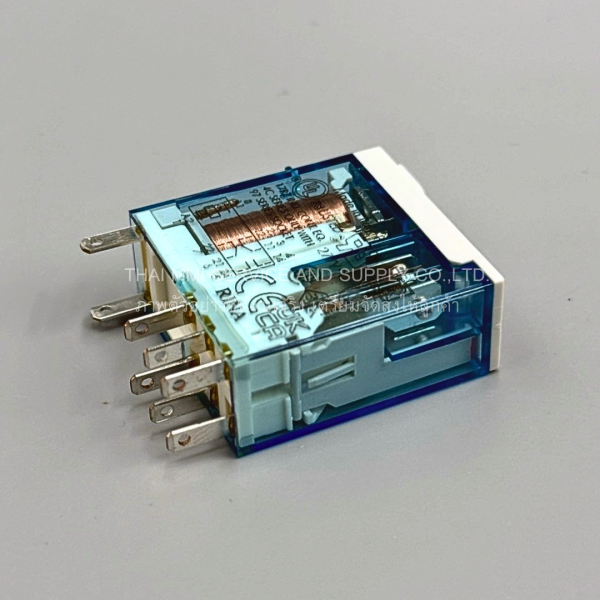

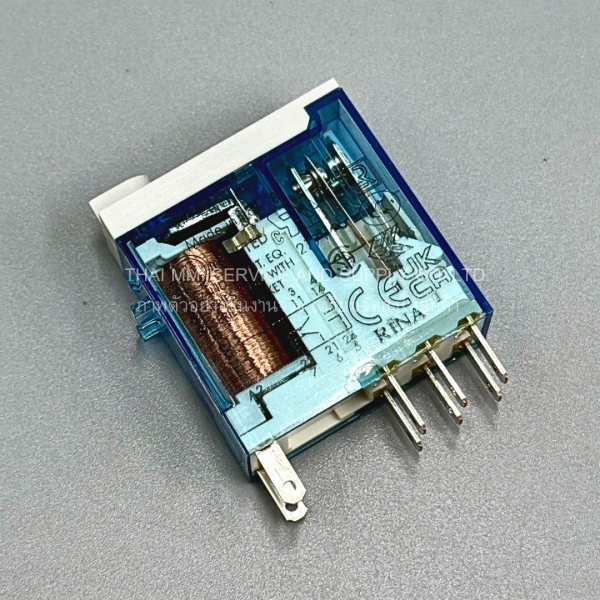

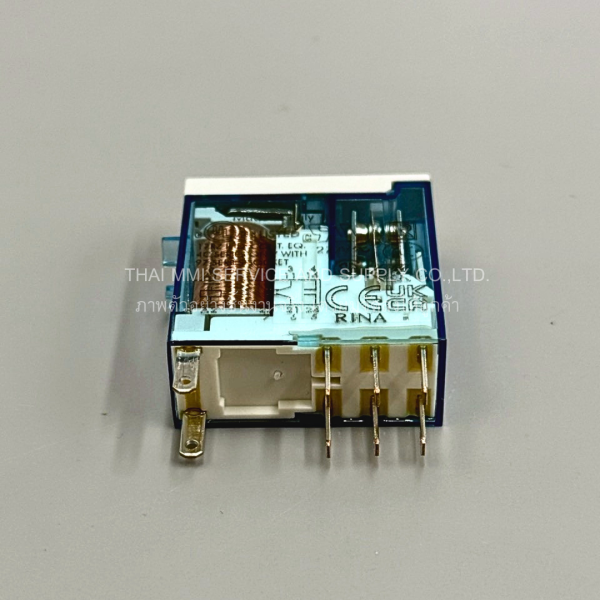

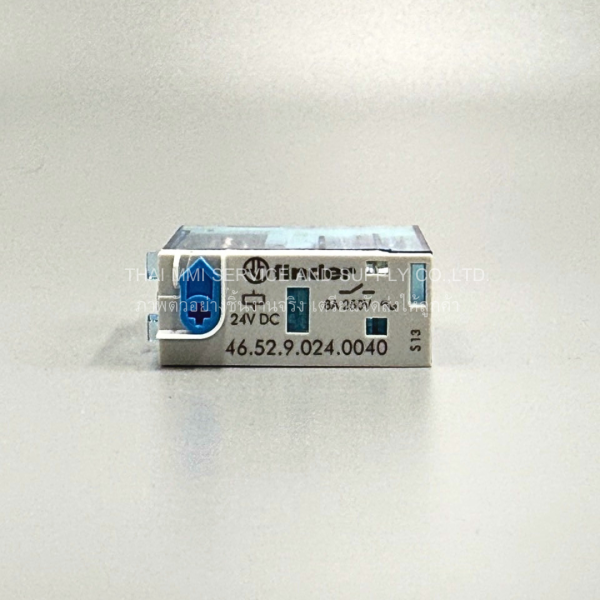

FINDER – MINIATURE INDUSTRIAL RELAY (46.52.9.024.0040)

Manufacturer: FINDER

Product: Miniature Industrial Relay

Manufacturer Part no.: 46.52.9.024.0040

Product range: 46 Series



General Information: FINDER – MINIATURE INDUSTRIAL RELAY (46.52.9.024.0040)

Miniature industrial relay from the Finder 46 Series.

Designed for switching and control applications in industrial electrical systems.

Features a 2 CO (DPDT) contact configuration.

Suitable for control panels, machinery, automation systems, lighting control, and electrical distribution.

Compatible with Finder 97 Series sockets for convenient installation and replacement.

Compact design suitable for a wide range of industrial applications.



Product Features

1.  2 CO (DPDT) contacts

2. Rated current: 8 A

3. Rated switching voltage: 250 V AC

4. Available with AC or DC coils

5. Plug-in / solder terminals

6. Optional lockable test button

7. Optional mechanical indicator

8. Optional LED indication

9. Cadmium-free contacts

10. Compatible with Finder 97 Series sockets
