Description

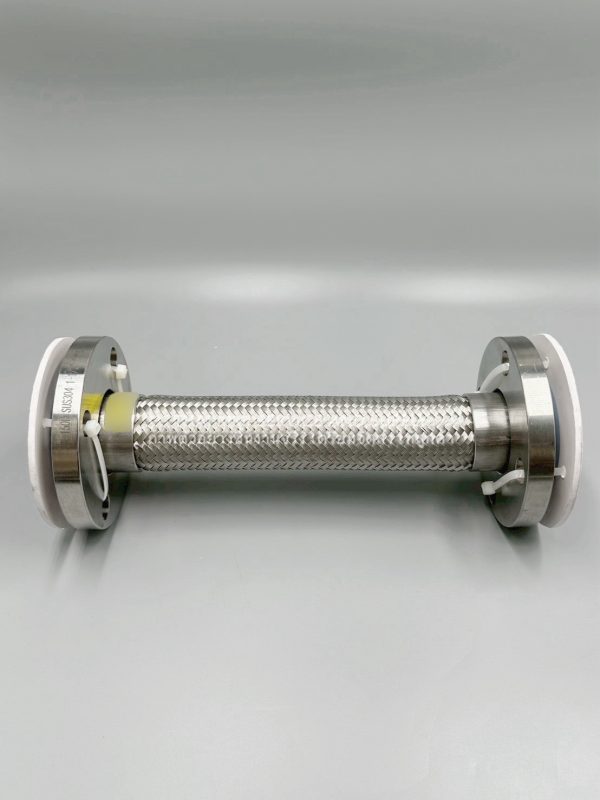

Flexible Hose PTFE 1-1/2″ | PTFE Convoluted Hose with SUS304 Braid

PTFE flexible hose 1-1/2″  with convoluted tube and SUS304 braid, designed for high temperature and chemical resistant industrial applications.

Scope: Made To Order
Product: Flexible Hose



Custom Flexible Hose 1-1/2″ – Convoluted Tube & SUS304 Braided Hose

Tube: PTFE Convolute
Braid: SUS304, 1 Braid

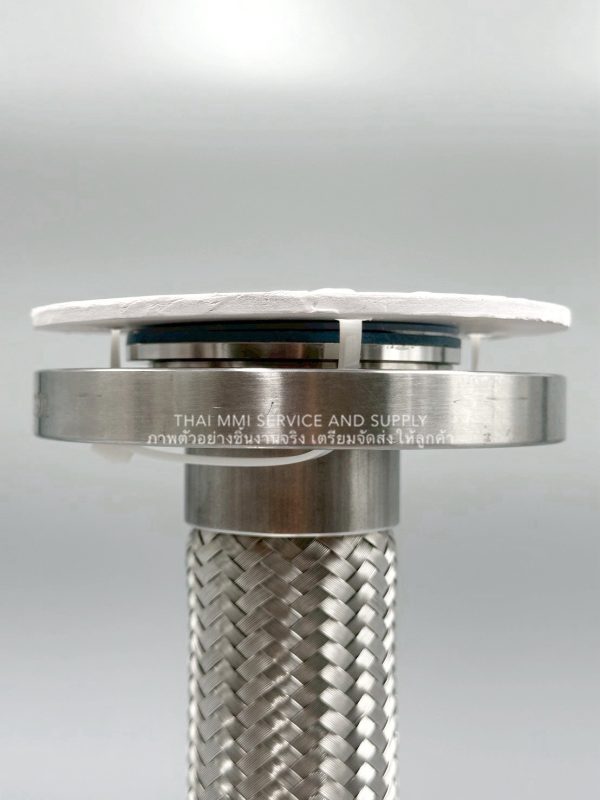

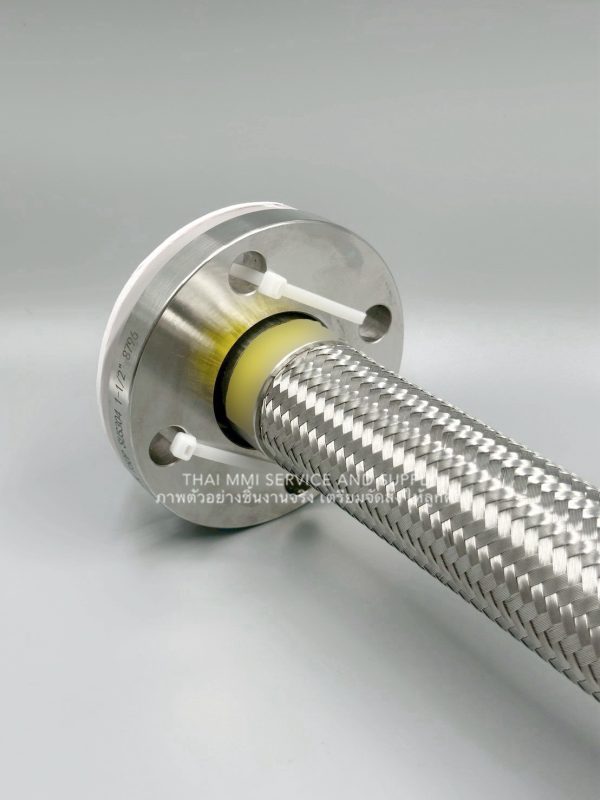

C/W Both end Loose Flange ANSI150 SUS304
Stub End SUS304 with Flare PTFE
Size: 40A (1-1/2″) * 310 mm.



Product & Features

• PTFE flexible hose 1-1/2″ for Industrial Applications
  Designed for industrial use requiring high durability, offering excellent resistance to chemicals and high temperatures
• Convoluted PTFE Tube – High Flexibility & Chemical Resistance
  Convoluted tube design enhances flexibility while providing superior chemical resistace, ideal for applications with movement or vibration.

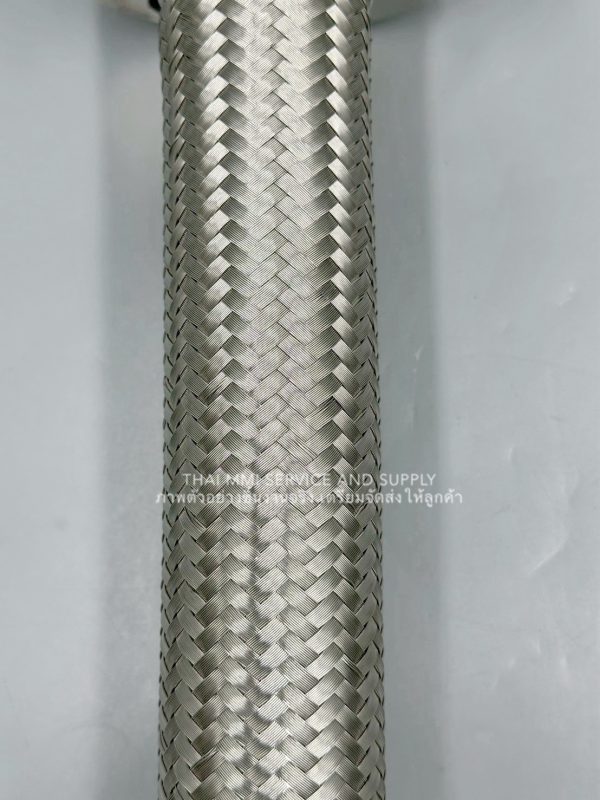

• SUS304 Braided Hose – Strength & Durability
  Reinforced with SUS304 stainless steel braid to improve pressure resistance and extend service life.
• ANSI150 Flange Connection – Secure Installation
  Equipped with ANSI150 standard flanges for easy installation, ensuring strong and reliable connections in industrial systems.
• Custom Made PTFE Hose – Made To Order
  Manufactured according to customer requirements, supporting custom dimensions and specific application needs.
