Description

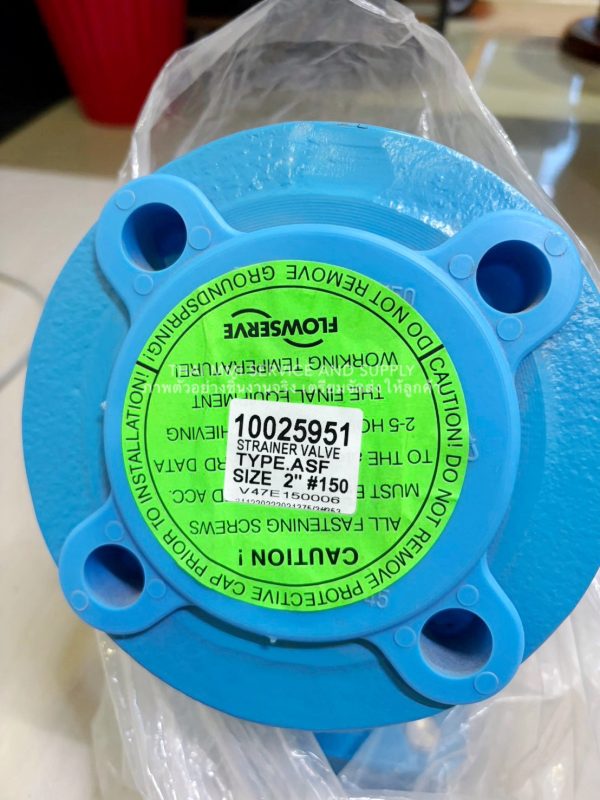

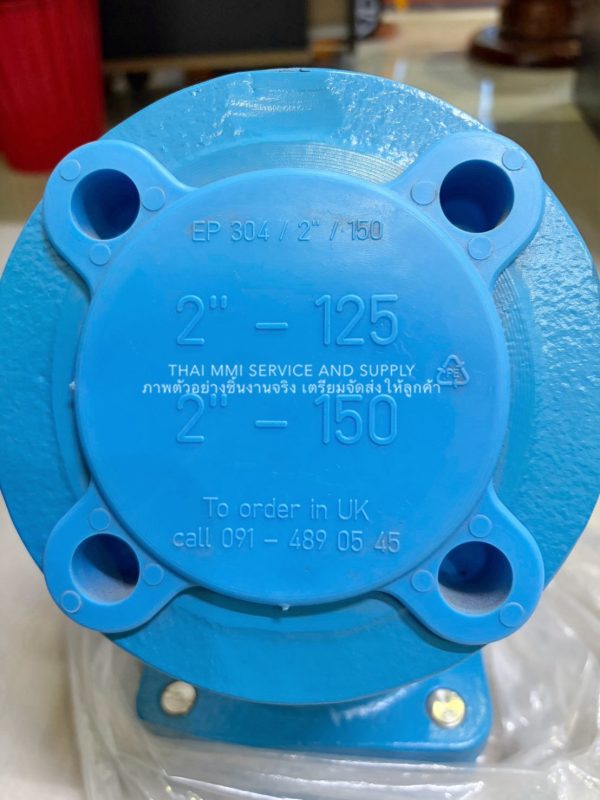

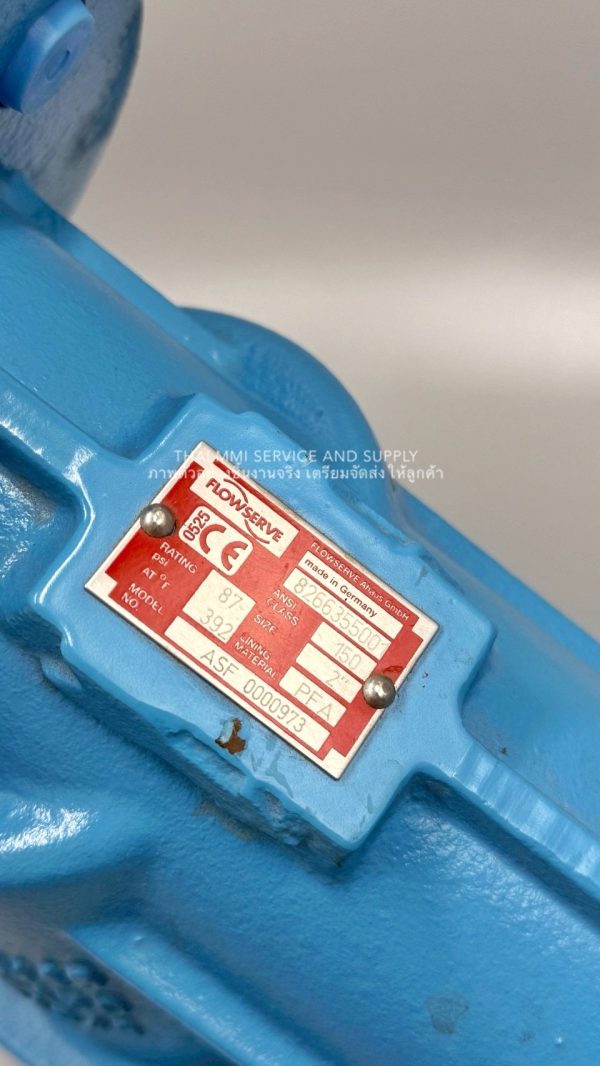

FLOWSERVE – Atomac strainer ASF

Manufactured:  Flowserve

Product Type:  Atomac strainer ASF

ANSI Class:  150

Rating (PSI):  87

Size:  2″

Lining Material:  PFA

Made in Germany

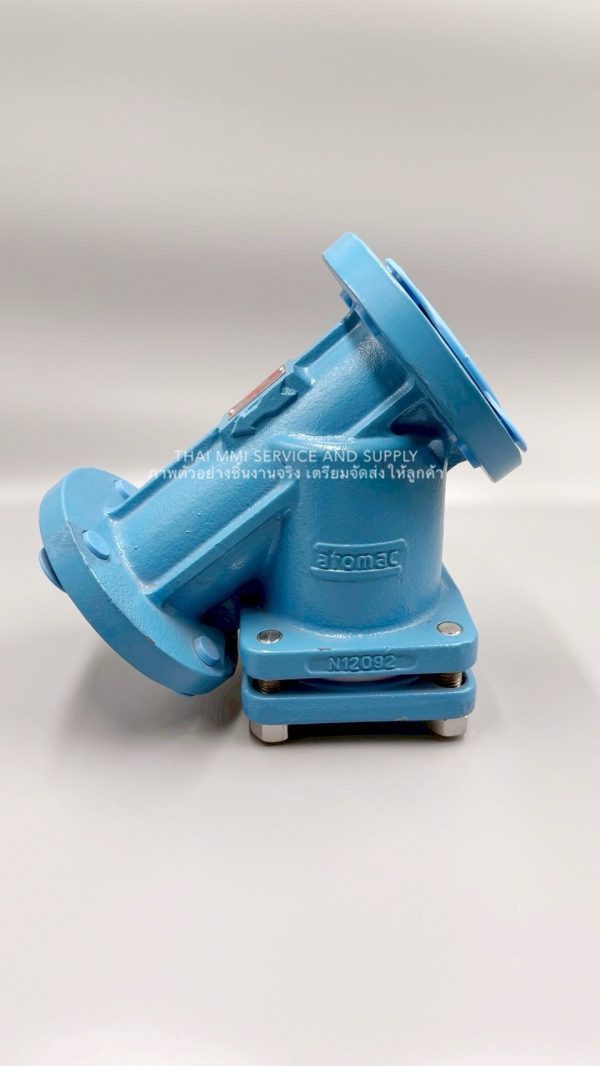

Flowserve Atomac ASF PFA lined strainer

The Flowserve PFA lined strainer is a useful component in handling of chemicals or highly corrosive mediums. IT is available in DIN and ASME (ANSI class 150) standards.

The flow path of this strainer through the filter insert is a larger area than the original pipe cross-section to minimize possible pressure loss. The corrosion resistant filter  inserts consists of two perforated PTFE cylinders with an ETFE filter screen in between which offeres the same outstanding corrosion-resistant properties as the lining material FEP or PFA.

Clogged filter inserts can be easily exchanged or cleaned without removing the strainer from the line whereas for added operator safety, the residual fluid in the insert area can be removed using a PTFE drain plug before removing the accress flange when changing or cleaning the filter. Various mesh sizes of filter screens or drillings are available to accommodate different levels of contamination. Permanent drain connections are availablr as an option, Optional: PFA-conductive liner material.

General Information:

Strainer Type ASF, Class150 (Art.-Nr.: 330-1102-xx) 1″, 1 1/2″, 2″, 3″, 4″, 6″, 8″

• ATOMAC PFA lined
• Max. operating temperature:  +150°C
• Face to face acc. to ASME B16.10
• Flanged acc. to ASME B16.5, Class 150, RF
• Body: Ductile iron EN-JS 1049 (GGG40.3) / PFA lined
• Flange: Ductile iron EN-JS 1049 (GGG40.3
• Flilter Cage: PTFE with ETFF filter fabric
• Drain plug & nipple: PTFE
• Mesh size: 300 µm (other sizes on request)
• Bolting: A2-70-ISO3506 Gr.A2 CI.70
