- Compact digital multimeter and mA loop calibrator solution
- Measure/Source/Simulate loop currents while powering the loop
- Manual and automatic ramp up – ramp down functions
- Easy-to-read backlit display

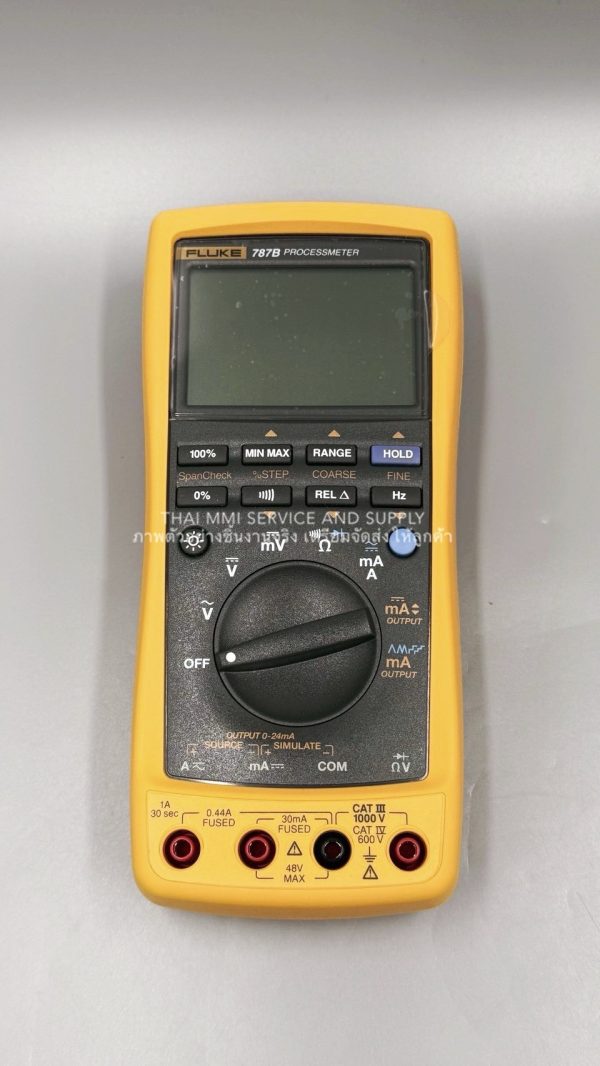

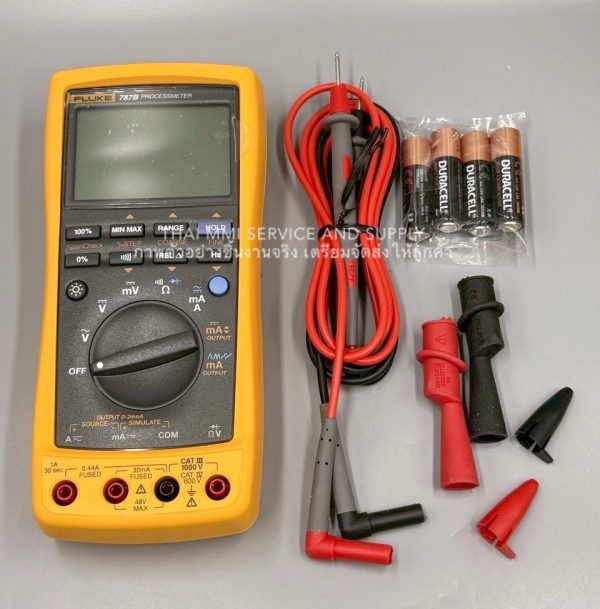

FLUKE – 787B ProcessMeter™
- Description
Description
FLUKE – 787B ProcessMeter™
Manufactured: FLUKE
Product Type: PrecossMeter
Model: 787B
Key Features
The Fluke 787B ProceeMeter doubles your troubleshooting capabilities by combining the power of a safety rated digital multimeter and mA loop calibrator onti a single, compact test tool. Based on the trusted measurement capabilities of the Fluke 87V meter, the 787B adds the ability to measure , source and simulate mA with the accuracy and resolution you would expect from Fluke mA loop calibration, giving you the ideal tool for troubleshooting and calibrating current loop application.
Specifications
| Maximum voltage applied between any jack and earth ground | 1000 V RMS |
| Storage temperature | -40 °C to 60 °C |
| Operating temperature | -20 °C to 55 °C |
| Temperature coefficient | 0.05 x (specified accuracy) per °C (for temperature < 18 °C or > 28 °C) |
| Relative humidity | 95% up to 30 °C; 75% up to 40 °C; 45% up to 50 °C; 35% up to 55 °C |
| Vibration | Random, 2 g, 5-500 Hz |
| Shock | 1 meter drop test |
| Safety | IEC61010-1, Pollution Degree 2/IEC61010-2-033, CAT IV 600/CAT III 1000 V |
| Size (H*W*L) | 50 * 100 * 203 mm (1.97*3.94*8.00 in) |
| Weight | 600 g |

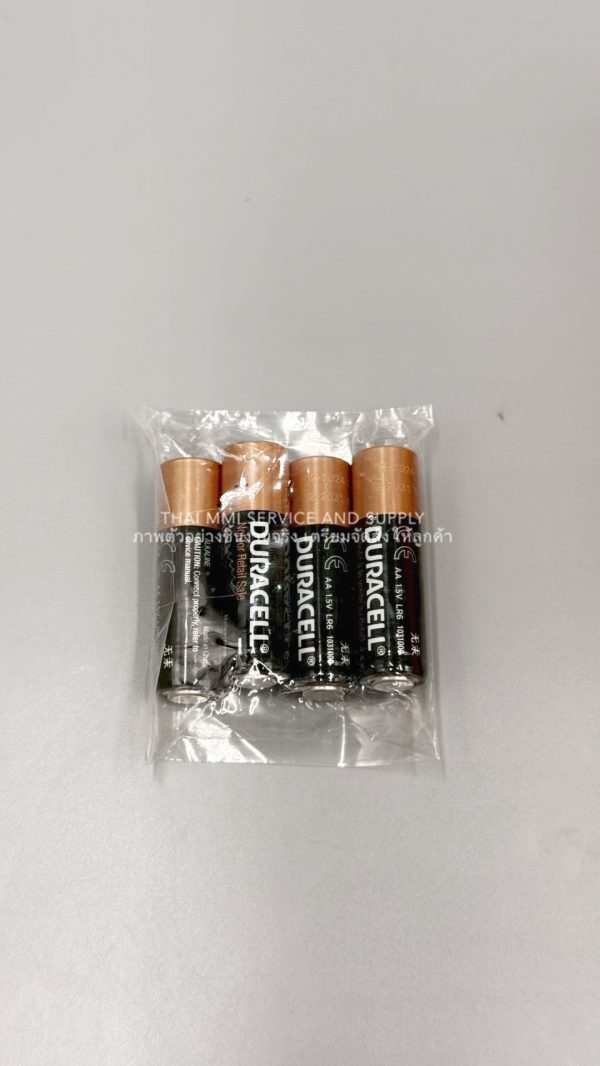

| Battery | Four AA alkaline batteries |
| Battery life | 140 hours typical (measurement)
10 hours typical (sourcing 12 mA) |
