Description

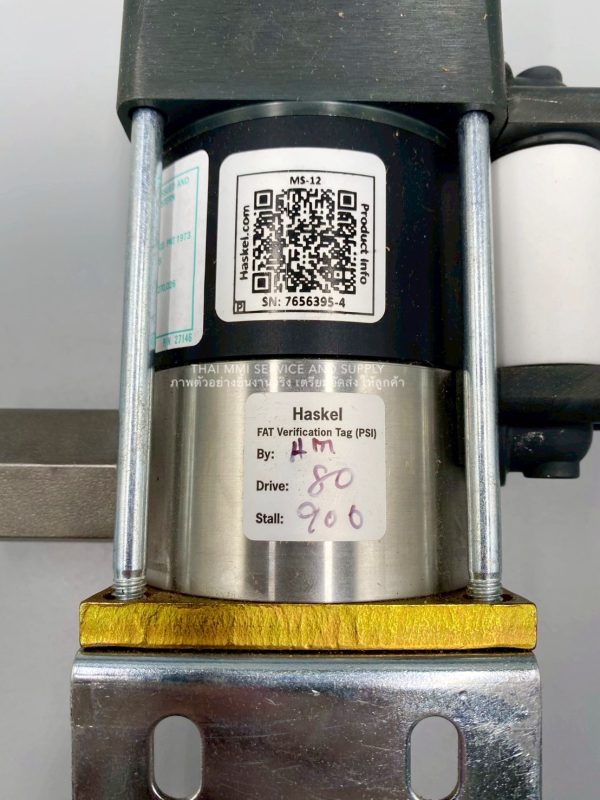

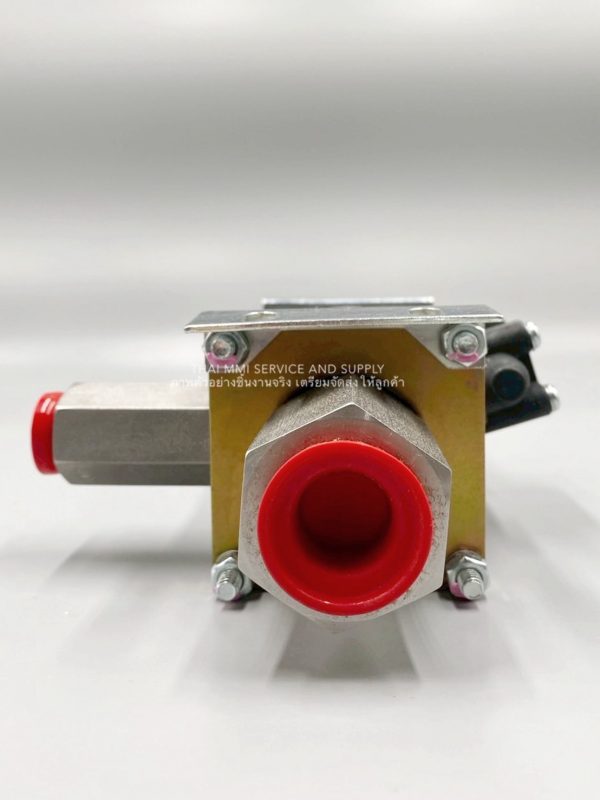

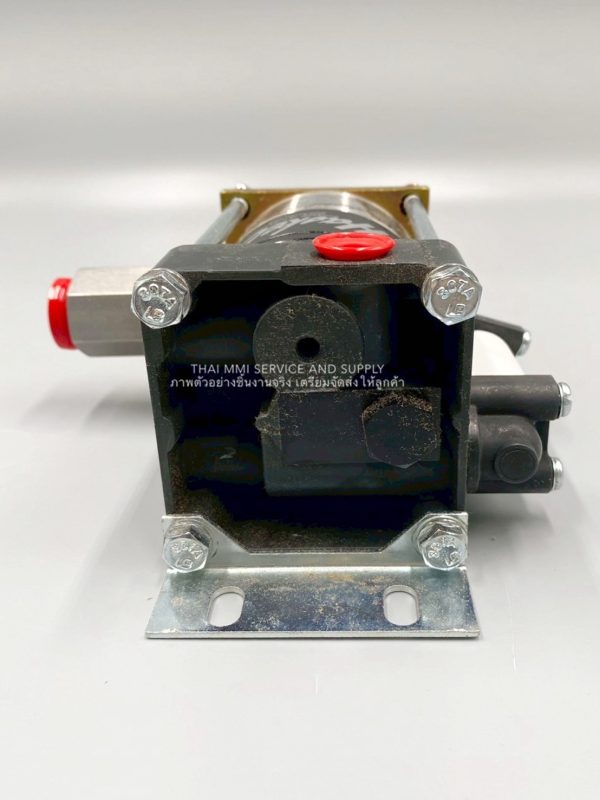

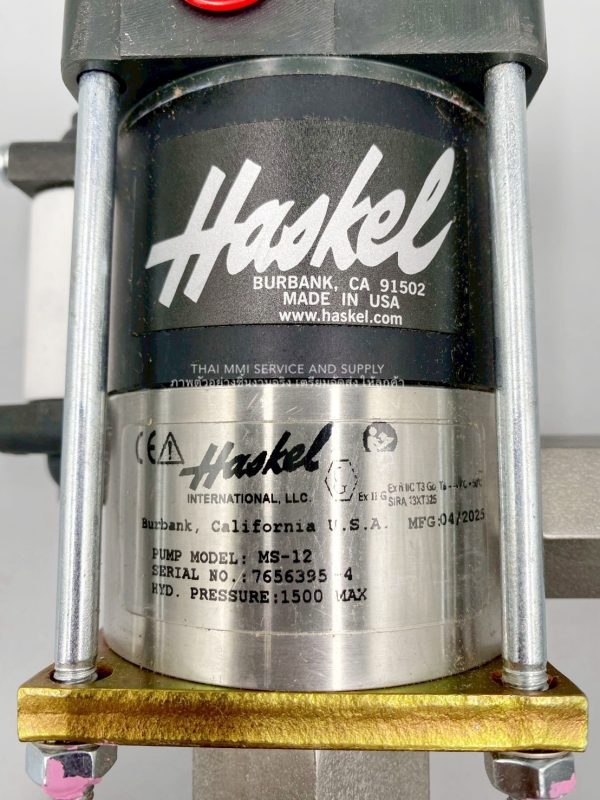

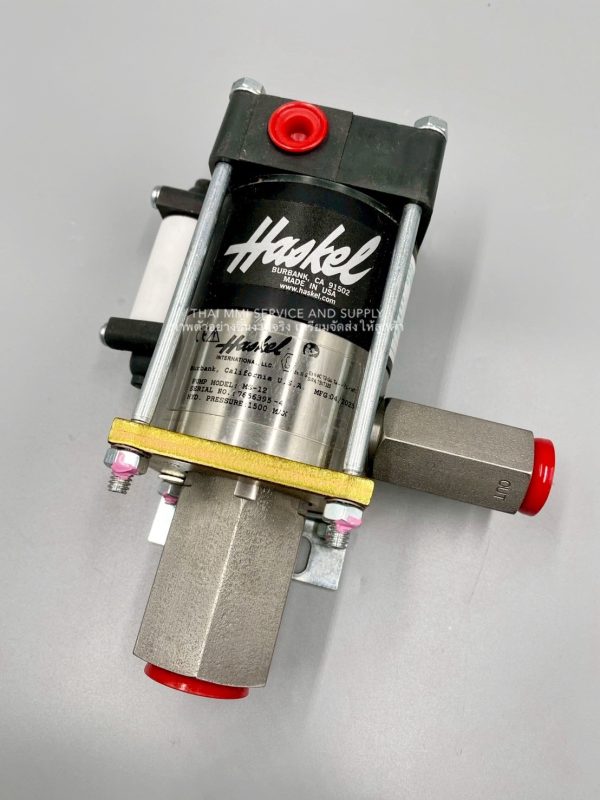

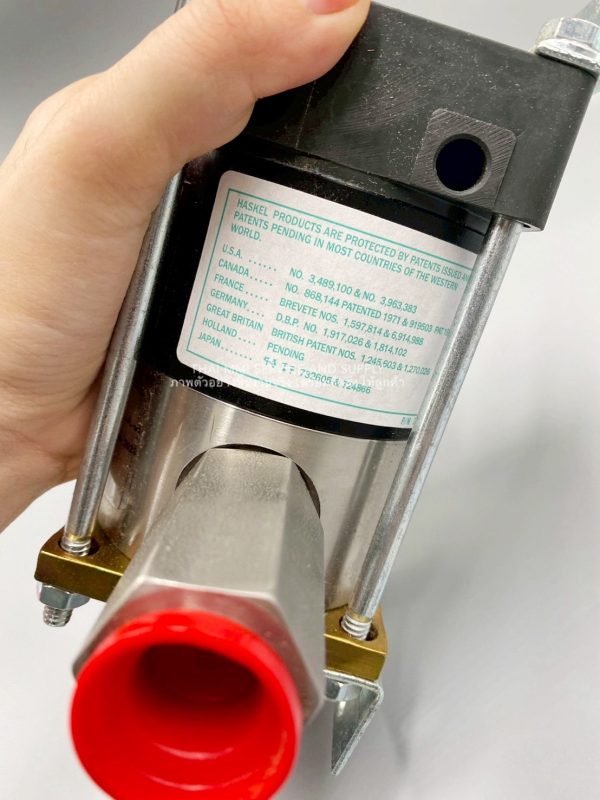

Haskel – Liquid Pump (MS-12)

Manufactured:  Haskel

Product Type:  Liquid Pump

Model :  MS-12



General Information

With a nominal pressure ratio of 12:1, the Haskel model MS-12 0.33HP air-driven liquid pump utilizes a single air head to boost liquid pressures to a maximum of 1500 PSIG.



Features & Benefits

• Safe pneumatic operation – no heat, flame or spark risk
• Infinitely variable cycling speed
• stall at pre-determined pressure to hold that pressure without consuming power
• Problem-free stop/start applications
• Easily automated-many modifications and control options
• Suitable for most liquids and liquefied gases
• Alternative gas drive options available, such as sour as gas, natural gas, boil off gases. or nitrogen
• Robust, reliable, compact and easy to maintain proven design
• No need for air line lubrication – saves costs and prevents contamination
• Unbalanced cycling spool provides immediate response or pressure changes
• Can be mnufavtured to ATEX and NACE

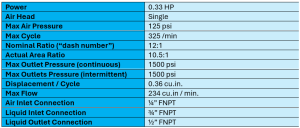

Technical Data

Typical Perfomance Characteristics (@100 PSIG air supply pressure):

• 200 in3/min  @ 700 psig
• 100 in3/min  @ 1125 psig



Materials of Construction:

• Pump section:  ALL SS
• Pluger:  316SS
• Non-metallics:  UHMWPE, PTFE, Buna
