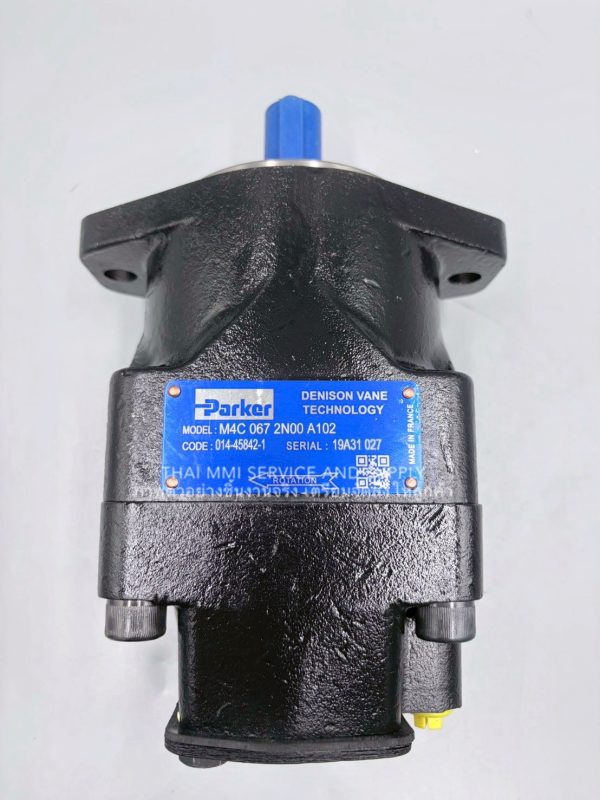

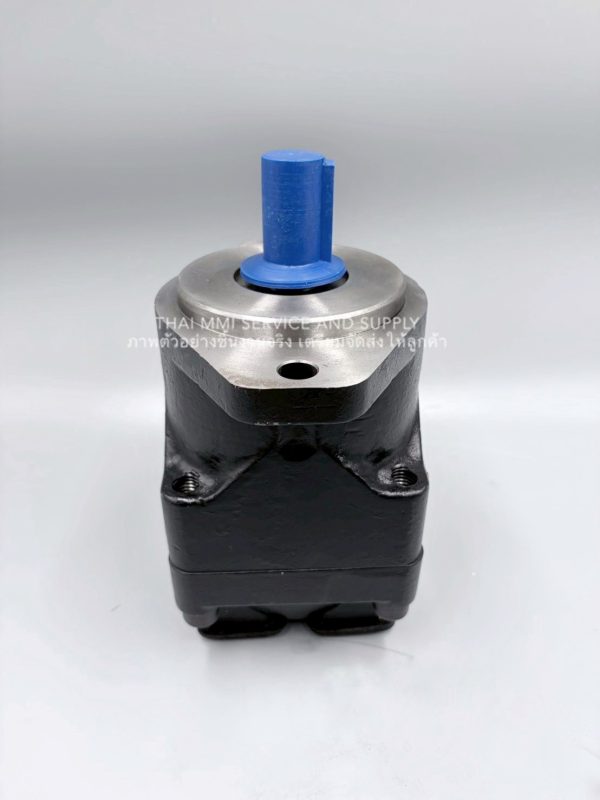

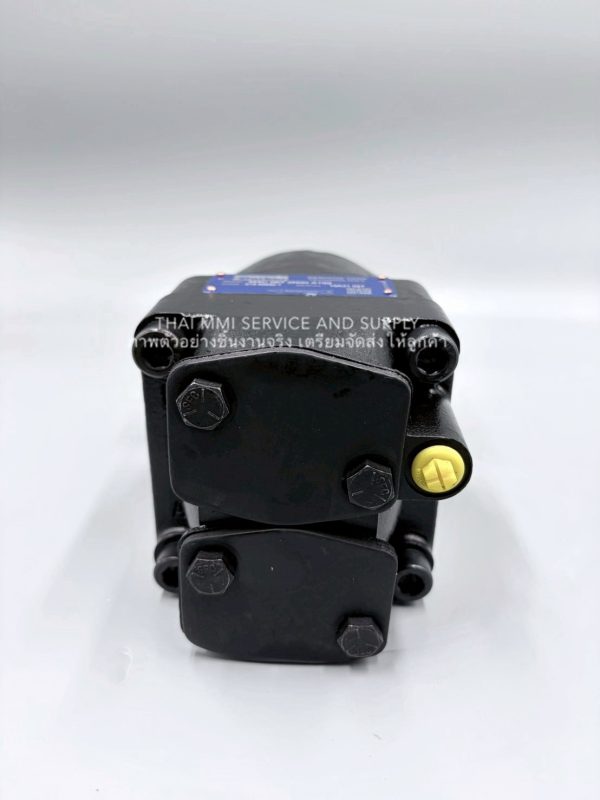

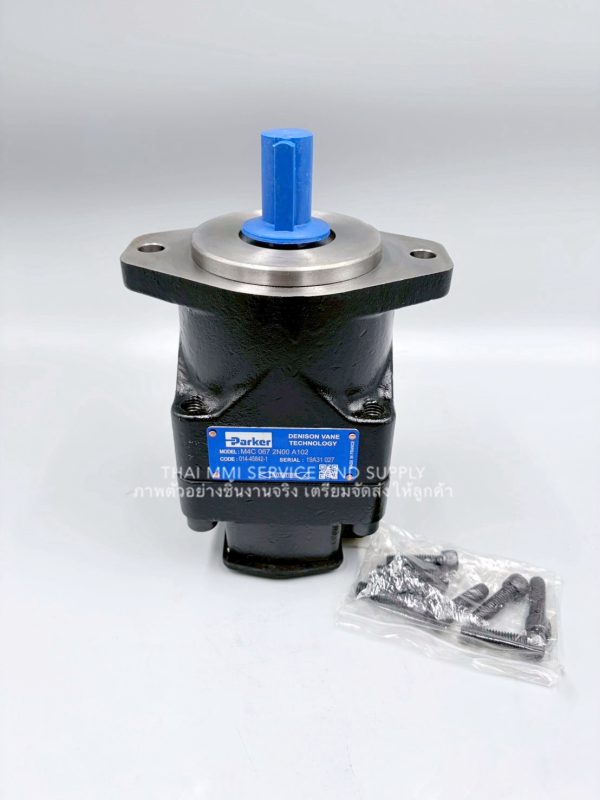

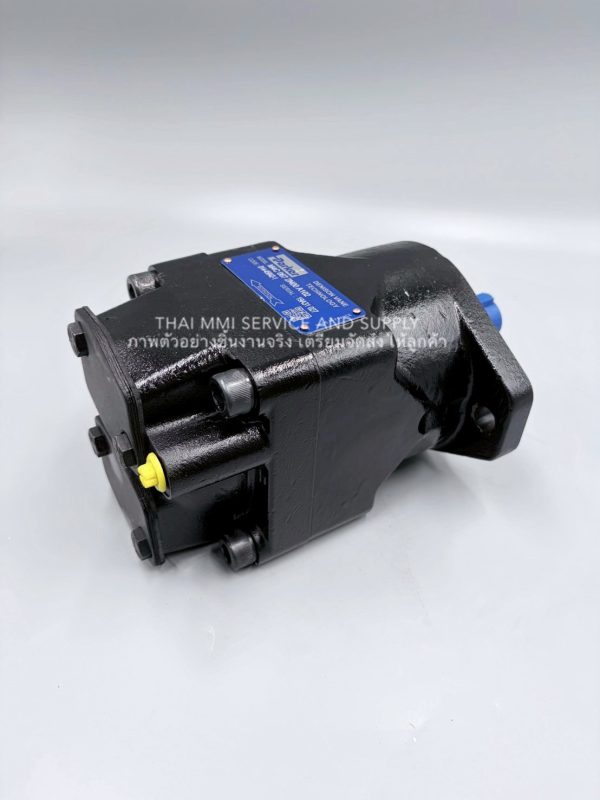

PARKER – M4C Hydraulic Vane Motor

Parker – M4C Hydraulic Vane Motor

Manufactured:  Denison Parker

Series:  M4C Series



General Information

Part Descriotion:  M4C 067 2N00 A102

The M3B amd M4* have been specifically designed for longer life in serve duty applications that require high pressure up to 230 bar, high speed up to 4000 RPM and low fluid lubricity.



Technical Specifications

• Torque Rating:  198 Nm (at 175 bar)
• Drain Port Size:  SAE 4 – 7/16″ UNF
• Flang Size:  SAE B
• Direction of Rotation:  Bi-directional
• Outlet Port Size:  1″ SAF 3000-UNC Thread
• Maximum Operating Pressure:  175 bar
• Rated Speed:  4000 RPM
• Port Connection Inlet:  1″ SAF 3000 – UNC thread
• Drain Option:  External
• Port Type:  Rear ports
• Displacement:  71.1
• Shaft Type:  Splined (non SAE)
• Material – Seals:  Buna-C
