Description

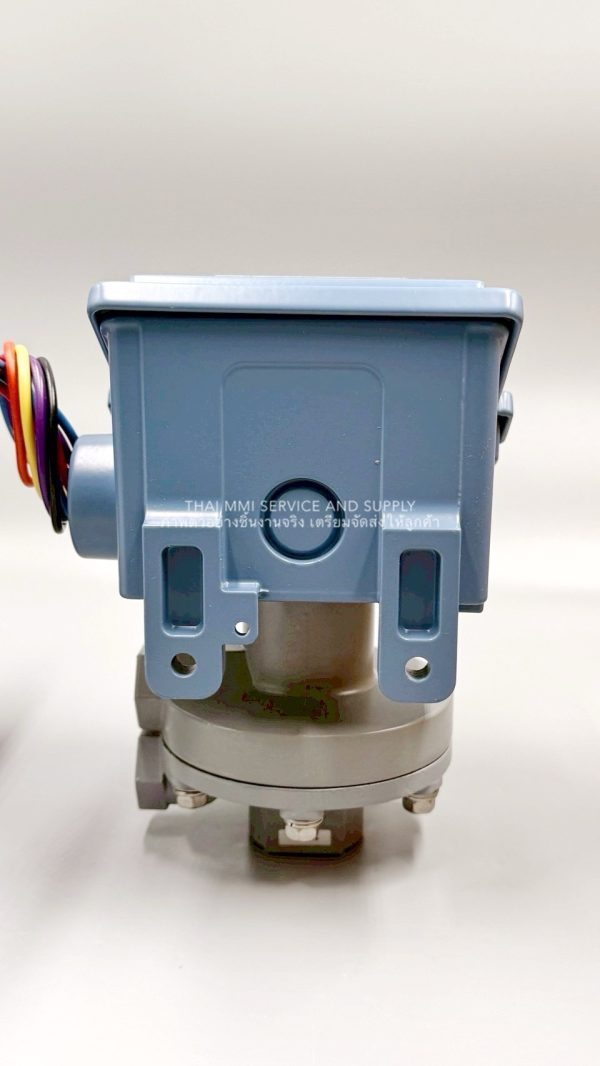

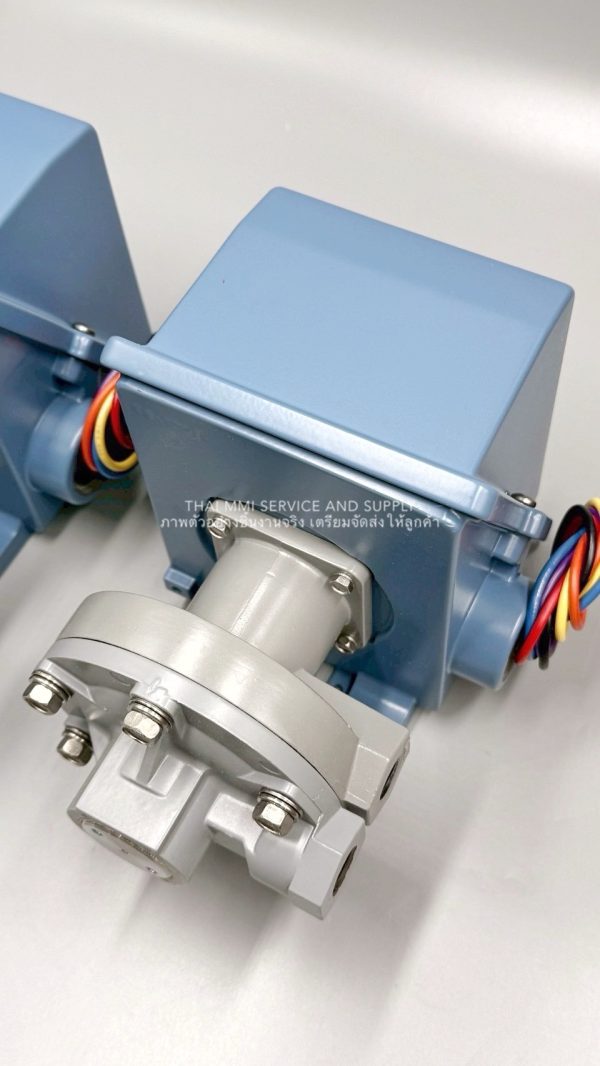

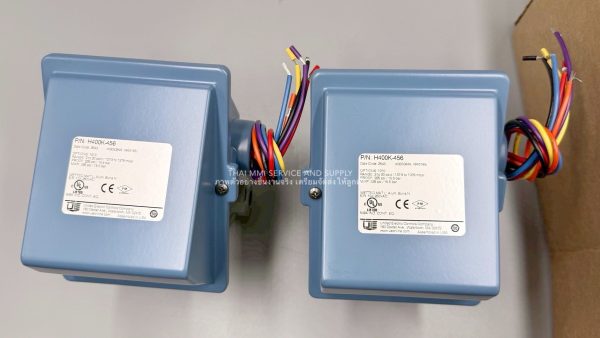

United Electric Control – H400K Differential Pressure Switch

Manufactered:  United Electric Control

Product:  Differential Pressure Switch

Serie:  H400K

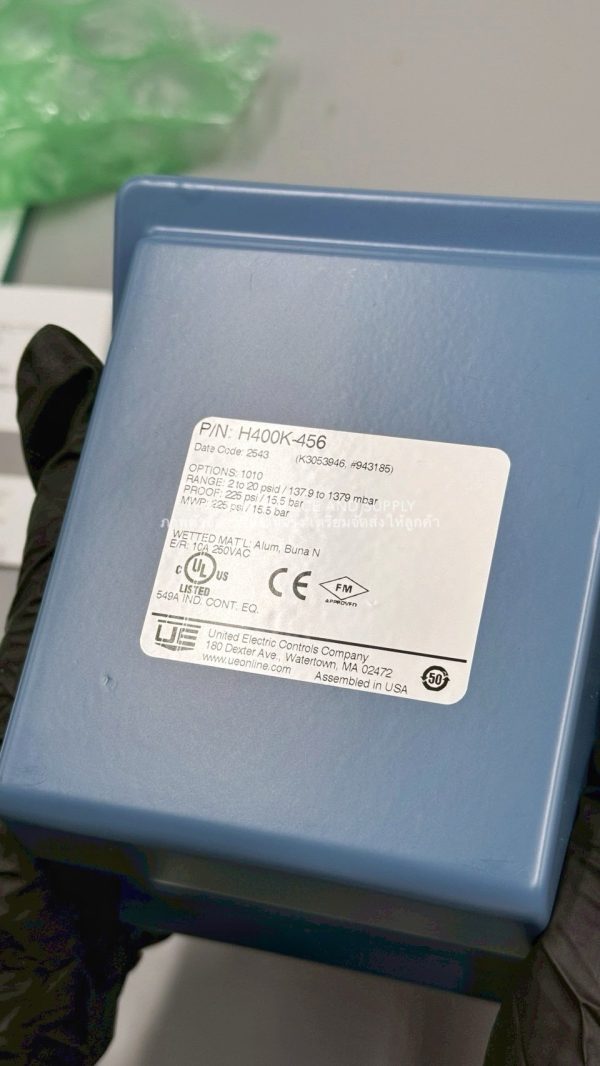

Part Number:  H400K-456

Option:  1010

Range:  2 to 20 psid / 137.9 to 1379 mbar

Proof:  225 psi / 15.5 bar

MWP: 225 psi / 15.5 bar



Generial Information

The 400 Series is a versatile family of vacuum, pressure, differential pressure and temperature switches for applications that require single or multiple switching capabilities. Dual and triple switch versions provide multi-output for alarm and shutdown, pre-alarm and alarm, high/low limit or level staging functions.

A wide variety of microswitch and process connection options, along with a weather-tight enclosure, make the 400 Series an ideal choice for most ordinary location applications. Its worldwide use is assured with approvals and certifications to agency standards.

Widely used throughout the process industries, the 400 Series provides threshold protection and control for many critical functions. Typical installations are found in industrial gas production, energy generation including pumps, turbines and compressors, pulp and paper, and water and wastewater treatment.



Featured

– 1,2 & 3 switch outputs
– Epoxy-coated enclosure designed to meet enclosure type 4X
– Wide variety of pressure sensors and materials
– Setting via reference dial or hex screw adjustment
– FM approved
– Adjustable Ranges
– UL listed and cUL certified. FM approved
– CE compliant to low voltage directive and pressure equipment directive
– Optional ATEX or GOST intrinsic safety compliance
– one, two or three switch outputs maybe separated up to 100% of range
– Wide variety of available options and pressure sensor modules
