Description

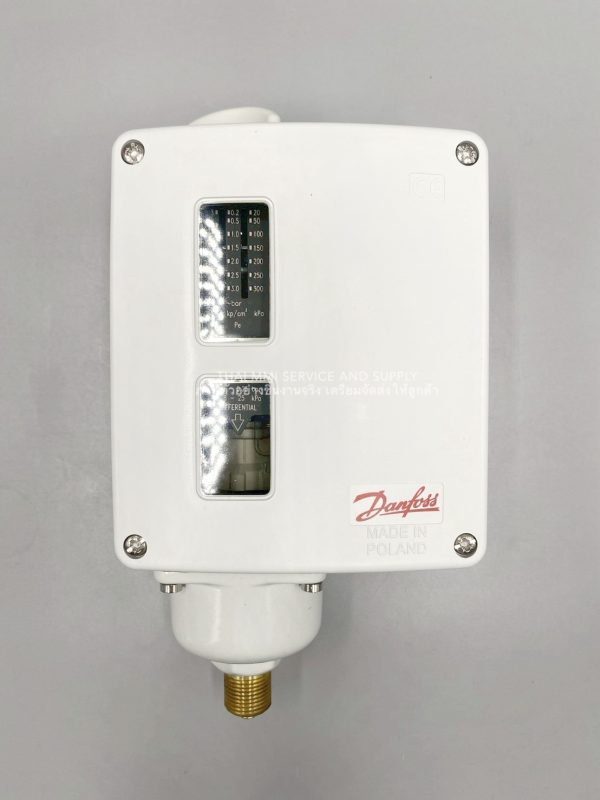

DANFOSS – Pressure Switch RT110

Manufactured:  Danfoss

Product Name Description:  Pressure switch

Product group:  Switchs and thermostats

Product Type:  RT110



General Information

• Regulation range [bar] Pe :  0.2 – 3
• Differential [bar] :  0.08 – 0.25
• Contact function :  SPDT, Reset
• Function :  Auto, Pressure
• Connection type :  G, Pressure
• Connection size :  3/8, Pressure
• Male/Female :  Male, Enclosure
• Rating IP :  IP66, Max. Working
• Pressure [bar] :  7



Specification

• Ambient temperature range (min – max) :  -50 °c to 70 °c
• Contact function :  SPDT
• Differential (min – max) :  0.08 – 0.25 bar
• Electrical connection (male/female) :  Female
• Electrical connection :  Screwed cable entry
• Electrical connection size :  2xPg 13.5
• Max. test pressure :  8 bar
• Max. working pressure :  7 bar
• Pressure connection size : P 3/8
• Pressure connection type :  G
• Pressure (male/female) :  Male
• Pressure sensing element :  Bellows
• Regulation range [bar] PE (min – max) :  0.2 – 3 bar
• Reset function :  Auto
