Description

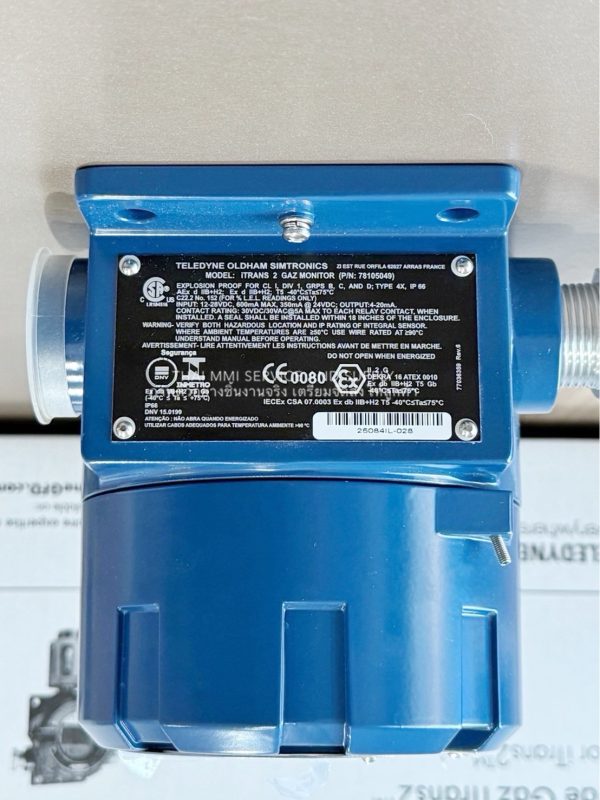

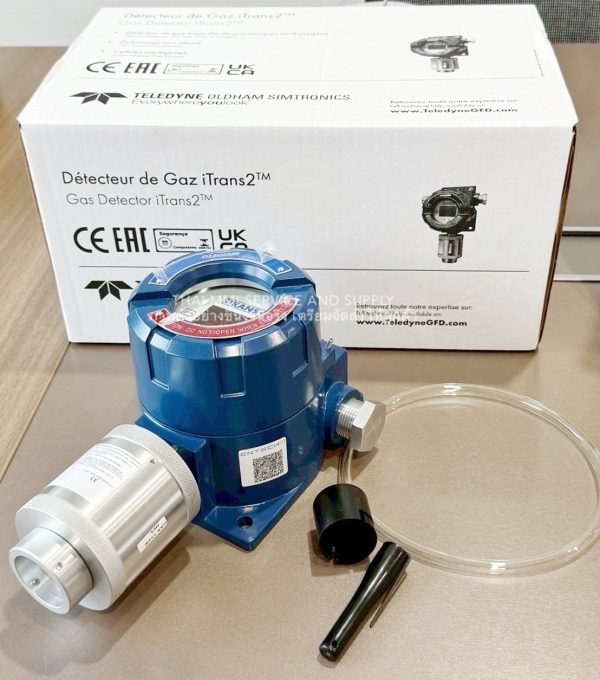

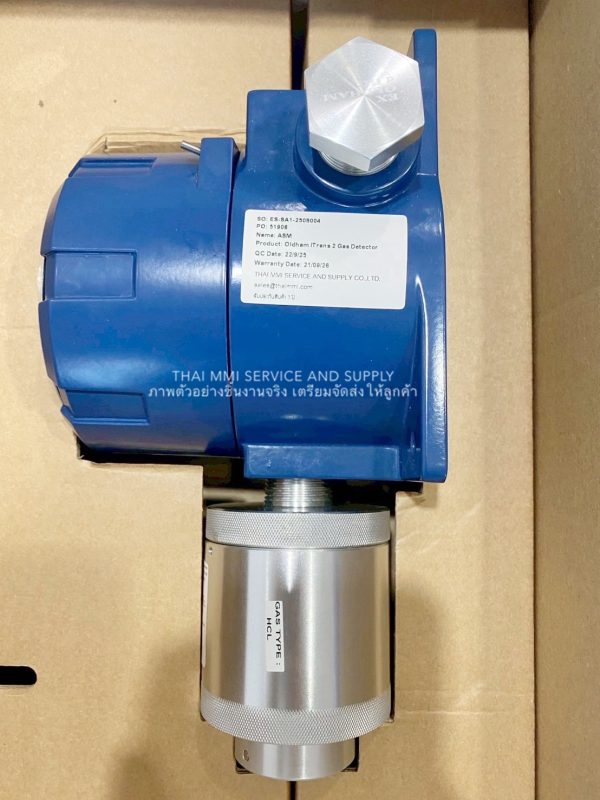

OLDHAM – Gas Detector iTRANS 2 1F430

Manufactured:  OLDHAM

Product Type:  Gas Detector

Model:  iTRANS 2

Ordering Code:  1F430

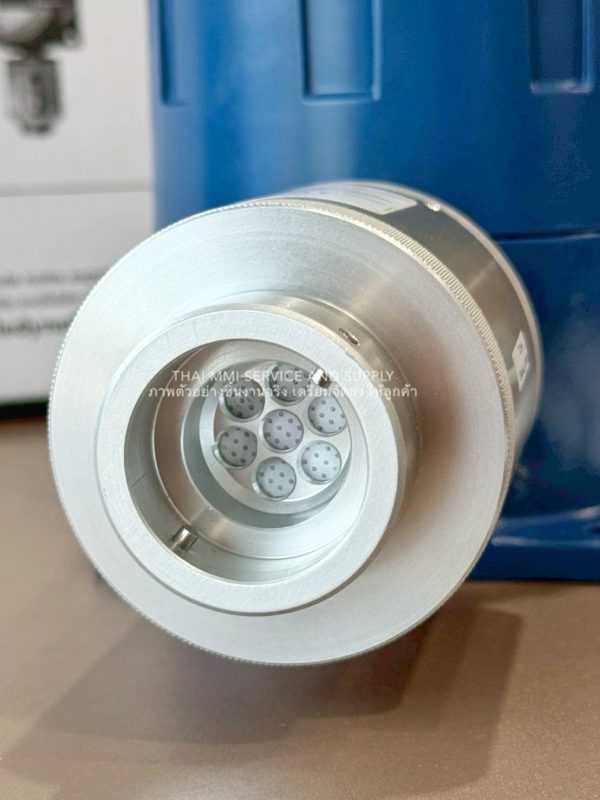

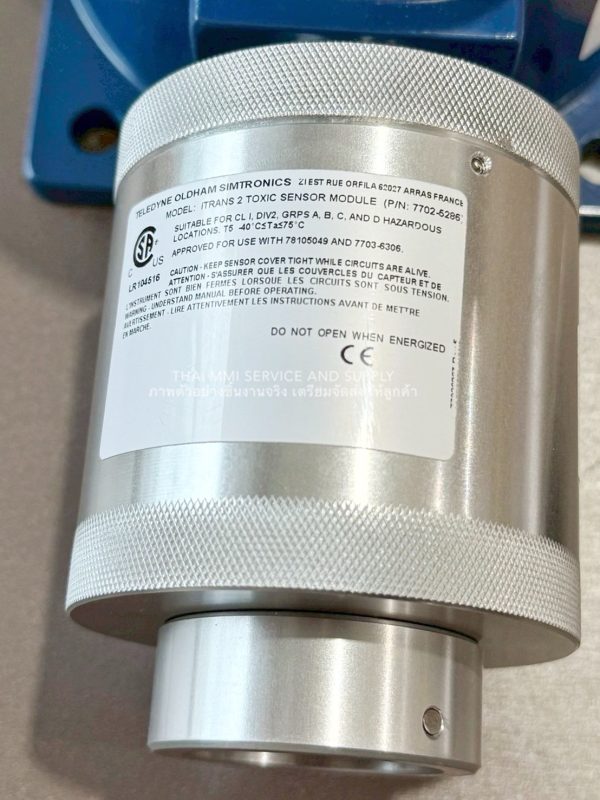

Sensors

The iTRANS 2 is available with sensors for most common gases including: Infrared, CO2, Catalytic Bead Combustible and Electrochemical Sensors. It can support simultaneous detection from two sensors, either directly attached to the display or remote sensors.



Versatile

• The iTRANS 2 can be configured to meet nearly any application through its state-of-the art features and options.
• Explosion-proof
• HART (option)
• RS-485 Modbus
• Stainless Steel Enclosure (optional)
• Programmable Relays (optional)
• 3-wire, 4-wire Installations
• Dual Gas Sensing (optional)
• Large Sensor Offering – Electrochemical, Catalytic and Infrared



Easy To Use

• Smart Sensor
• Non-Intrusive Calibration
• Dual-channel split-screen LED display



Features and Benefits

Dual Gas Sensing	The iTrans2 can detect and display up to two gases on certain models. Both gas sensors may be mounted directly to the transmitter or may be mounted remotely.
Wide Sensor Offering	The iTrans2 supports Electrochemical, Catalytic Bead and infrared sensors. The iTrans2 is available for most common industrial gases, allowing standardization for your gas detection equipment.
Smart Sensors	The iTrans2’s smart sensors come factory pre-calibrated and automatically send sensor information, such as sensor life, to the transmitter. A sensor life indicator is displayed immediately after each calibration.
Dual – channel Split – screen LED display	For optimum visibility in dark places
Non – Intrusive Calibration	The iTrans2’s non-intrusive interface keys operate with a simple magnetic wand and allow for full transmitter configuration and calibration without opening the unit’s explosion-proof housing.
Programmable Relays	The microprocessor-controlled transmitters are capable of independent operation or multi-point system configuration. With optional on-board relays, the monitor has the added ability of stand-alone operation, activating alarms, horns or fans, and can also shut down a system without the need to wire back to a central control panel.
Multipel Wiring Options	The iTrans2 can be configured to meet almost any installation application. Common configurations include: 3-Wire (4-20 mA) model – allow for full utilization of the iTrnas2’s features and options and can be used with all the iTrans2’s sensors. 4-Wire (Digital-Modbus) models – Allows for full utilization of the iTrans2’s features and options and can be used with all the iTrans2’s sensors.
HART Communication Protocol	With the optional HART Communication Protocol, the iTrans2 offers remote diagnostics, set-up or calibration by super – imposing a high-frequency current across the industry standard 4-20 mA analog line.
Stainless Steel Enclosure	An optional stainless-steel enclosure for corrosive environments.
