Description

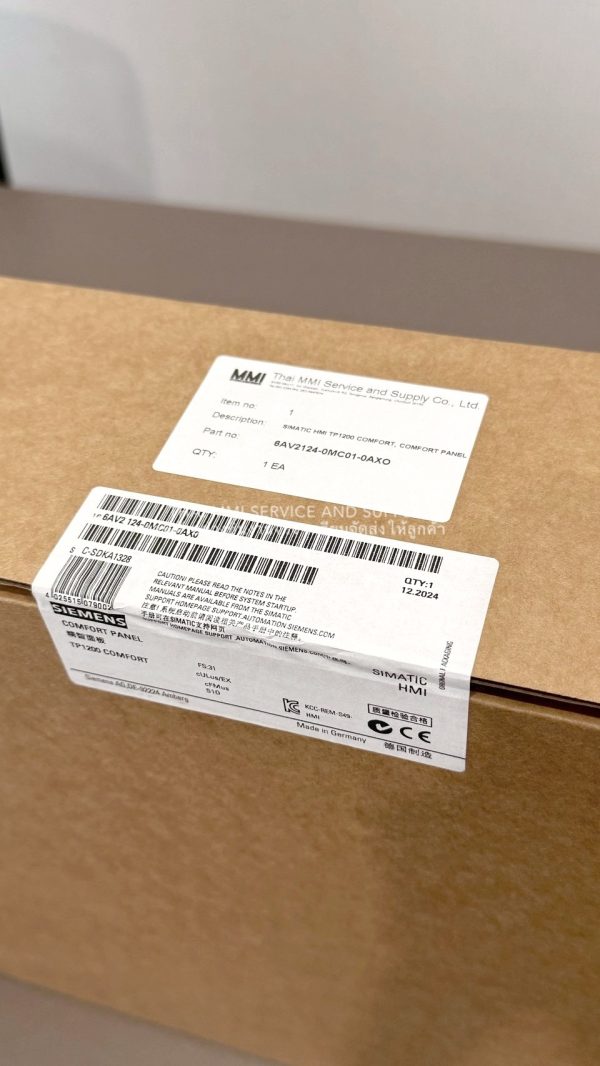

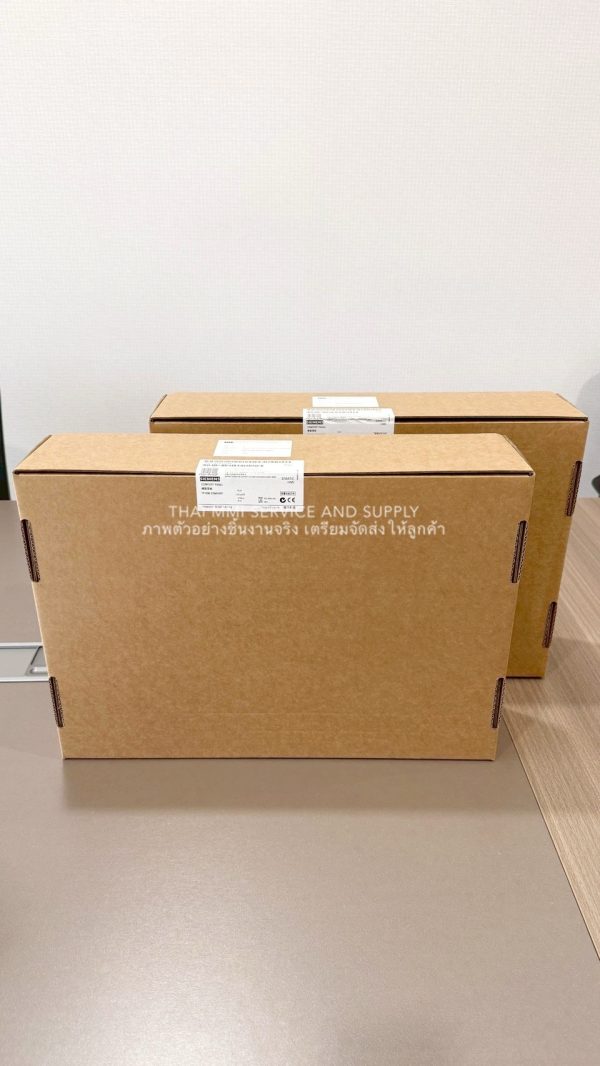

SIEMENS – 6AV2124-0MC01-0AX0

SIMATIC HMI TP1200 Comfort

Manufactured:  SIEMENS

Product:  SIMATIC HMI TP1200 Comfort

Model:  6AV2124-0MC01-0AX0



Product Overview

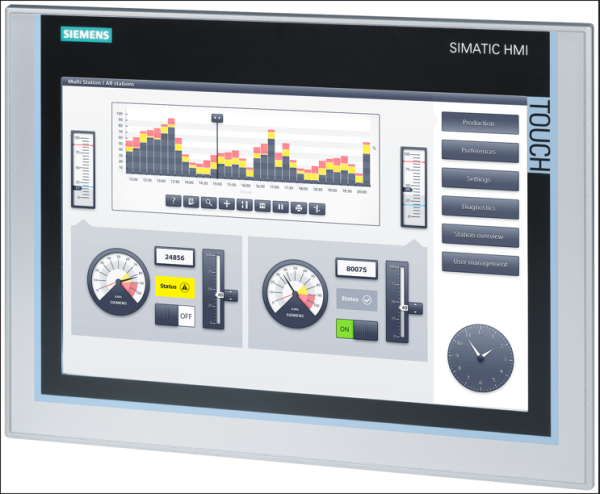

SIMATIC HMI TP1200 Comfort, Comfort Panel, touch operation, 12″ widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11

Product Class:  A : Standard product which is a stock item could be retured within the returns guidelines/period.

Net Weight:  3.46 kg.



Technical Data

General Information

• Product type designation :  TP1200 Comfort

Display

• Design of display :  TFT
• Screen diagonal :  12.1 in
• Display width :  261.1 mm
• Display height :  163.2 mm
• Number of color :  16 777 216
• Resolution (Pixels) -> Harizontal image resolution :  1 280 pixel
• Resolution (Pixels) -> Vertical image resolution :  800 pixel
• Backlighting -> MTBF backlighting (at 25 °C) :  80000 h
• Backlighting -> Backlight dimmable :  Yes; 0-100 %

Control Element

• Keyboard fonts -> Numeric keyboard :  Onscreen keyboard
• Keyboard fonts -> Alphanumeric keyboard :  Onscreen keyboard
• Touch operation -> Design as touch screen :  Analog-resistive

Installation type / mounting

• Mounting :  vertical
• Mounting in portrait format possible :  Yes
• Mounting in landscape format possible :  Yes
• Maximum permissible angle of inclination without external ventilation :  35°

Supply Voltage

• Type of supply voltage :  DC
• Rated value (DC) :  24V
• Permissible range, lower limit (DC) :  19.2V
• Permissible range, upper limit (DC) :  28.8V

Input Current

• Current consumption (rated value) :  0.85A

Power

• Active power input, typ. :  20W

Interfaces

• Number of industrial Ethernet interfaces :  1 ; 2 ports (switch)
• Number of RS 485 interfaces :  1 ; RS 422 / 485 combined
• Number of RS 422 interfaces :  0 ; together with RS 485
• Number of USB interfaces :  2 ; USB 2.0  (USB mini B -> 1 ; 5-pole)
• Number of SD card slots :  2

Language

• Number of online/runtime languages :  32
• Languages per project :  32

Machanics/Material

• Enclosure material (front) :  Aluminum

Dimension

• Width of the housing front :  330 mm
• Height of the housing front :  241 mm
• Mounting cutout, width :  310 mm
• Mounting cutout, height :  221 mm
• Mounting Depth :  64 mm
