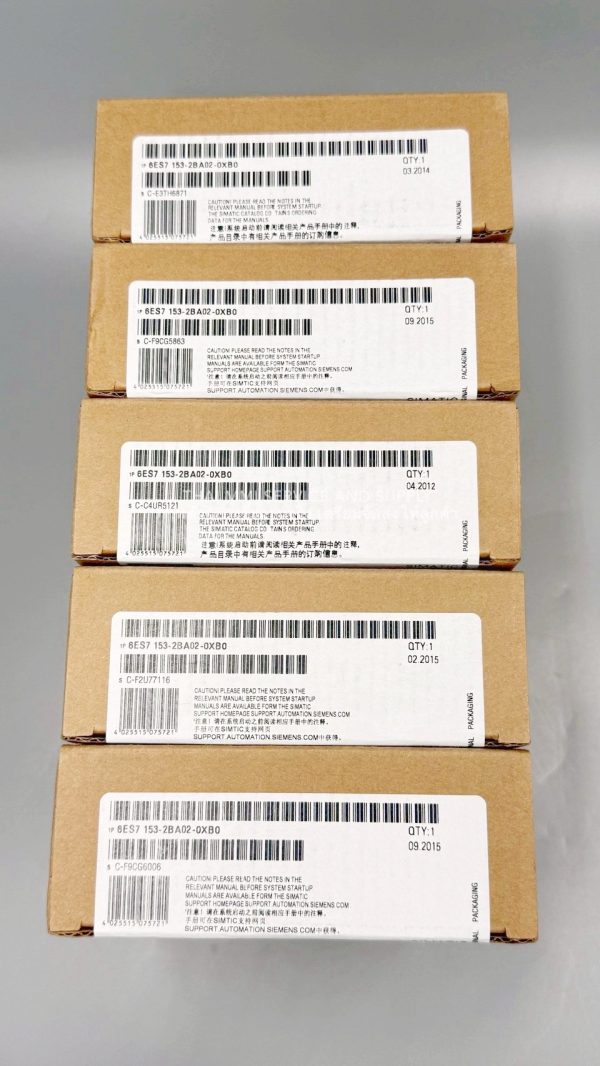

SIEMENS – 6ES7153-2BA02-0XB0
- Description
Description
Product Information
Siemens – 6ES7153-2BA02-0XB0
Manufactured: Siemens
Product: Inuterface Module
System: SIMATIC DC / ET 200M
Model: 6ES7153-2BA02-0XB0
Function:
Connects distributed I/O systems to the PROFIBUS DP network.
Features:
High-Feature IM 153-2 interface module with redundancy capability and timestamping support.
General Information
SIMATIC DP, Connection ET 200M IM 153-2 High Feature for max. 12 S7-300 modules with redundancy capability, Timestamping suitable for isochronous mode New features: up to 12 modules can be used Slave INITIATIVE for Drive ES and Switch ES Expandend quantity structure for HART auxiliary variables Operation of the 64-channel module 32 signals/slot
Technical Data
Supply Voltage
- Rated value (DC): 24 V
- Permissible range, lower limit (DC): 20.4 V
- Permissible range, upper limit (DC): 28.8 V
- External protection for power supply lines (recommendation): 2.5 A
Input Current
- Current consumption, max: 600 mA
- Inrush current, typ.: 3 A
Output Voltage / header
- Rated value (DC): 5 V
Output current
- for backplane bus (5 V DC.), max.: 1.5 A
Power loss
- Power loss typ.: 5.5 W
Address Area (Addressing volume)
- Inputs: 244 byte
- Output: 244 byte
Hardware configuration
- Number of modules per DP slave interface, max.: 12
Interfaces
- Transmission procedure: RS485
- Transmission rate, max.: 12 Mbit/s
Isolation
- Isolation tested with: Isolation voltage 500 V
Degree and class of protection
- IP degree of protection: IP20
Ambient conditions (Ambient temperature during operation)
- min: 0 °C
- max: 60 °C
Ambient conditions (Altitude during operation relating to sea level)
- Installation altitude above sea level, max.: 3 000 m.
Dimensions
- Width: 40 mm.
- Height: 125 mm.
- Depth: 117 mm.
- Weight approx.: 360 g.
