Description

Product Information

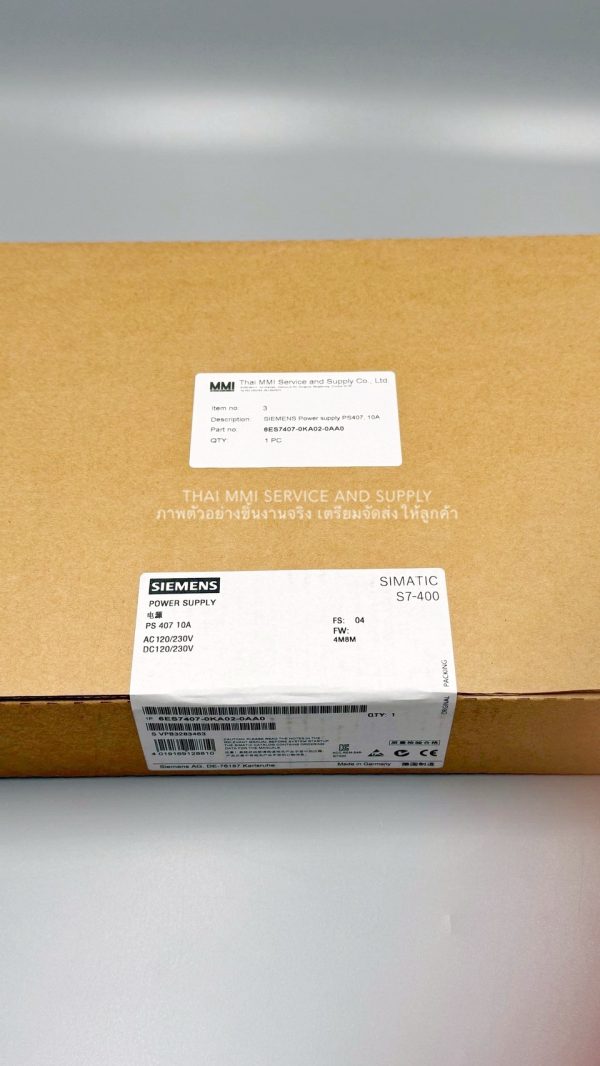

For Siemens – 6ES7407-0KA02-0AA0

Manufactured:  SIEMENS

Product Type:  Power Supply Module

Model: 6ES7407-0KA02-0AA0

---

General Information

SIMATIC S7-400, Power supply PS407 : 10 A, wide range. UC 120/230V, 5 V DC/10 A

---

Technical Data

Supply voltage

• Rate value (DC):  120 V DC & 230 V DC
• Rate value (AC):  120 V AC & 230 V AC

Input Current

• Rated value at 120 V DC :  1 A
• Rated value at 230 V DC :  0.5 A
• Rated value at 120 V AC : 0.9 A
• Rated value at 230 V AC :  0.5 A
• Inrush current, max.:  63 A; Full width at haft maximum 1 ms
• Leakage current, max.:  5 mA

Output Voltage / Header

• Type of out voltage:  DC
• Rated value (DC):  5 V DC & 24 V DC

Output Current

• For backplane bus (5 V DC), max.:  10 A; mo base load required
• Dor backplane bus (24 V DC), max.:  1 A; idling-proof

---

Power

• Active power input, typ.:  65 W

Power loss

• Power loss, typ.:  20 W

---

Battery

• Backup battery (optional):  1x lithium AA; 3.6 V / 2.2 Ah

---

Ambient Conditions (Ambient temperature during operation)

• min.:  0 °C
• max.:60 °C

---

Connection Method

• Design for electrical connection:  3x 1.5 mm2, solid or standard wire with end sleeve, external diameter 3 mm to 9 mm

---

Dimensions

• Width:  50 mm
• Height:  290 mm
• Depth:  217 mm
• Weight:  1 200 g
