Description

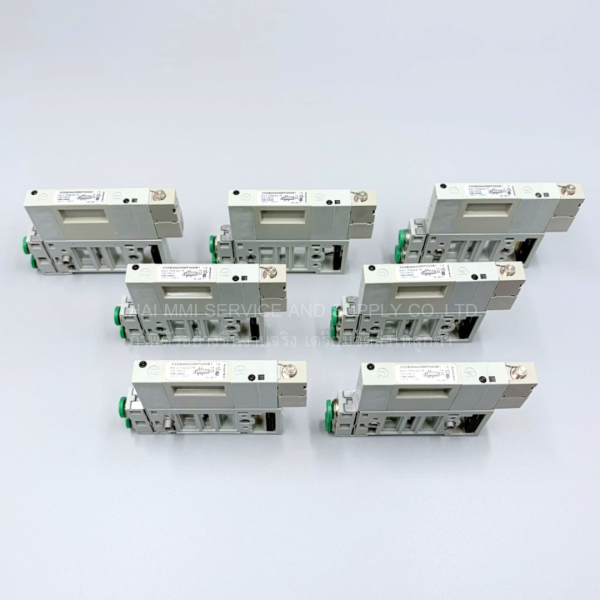

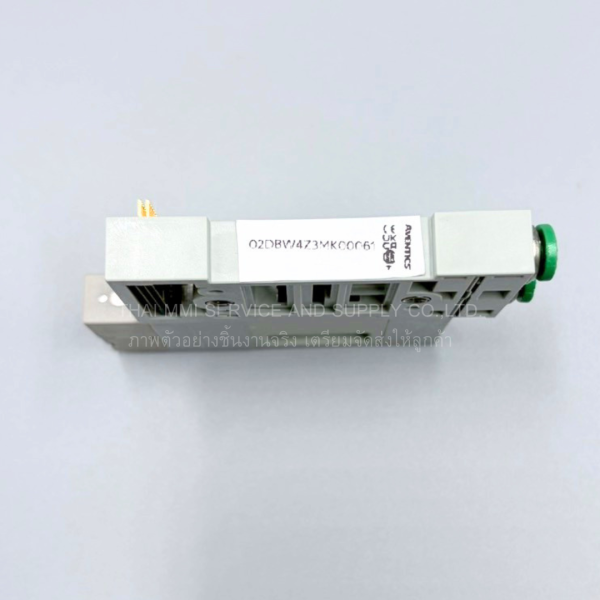

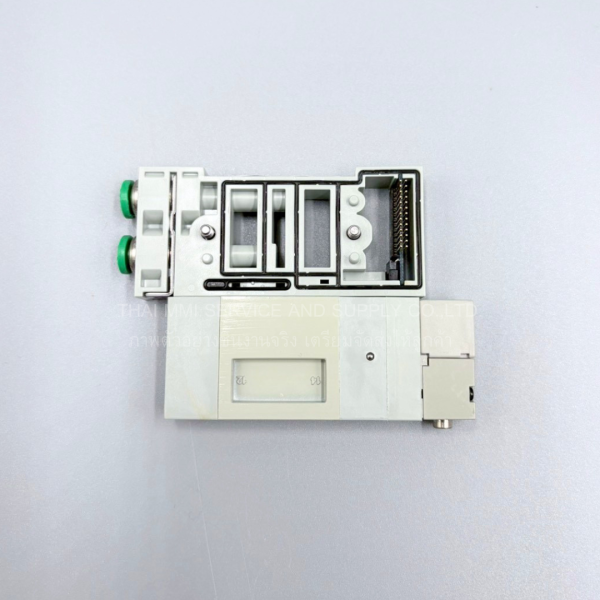

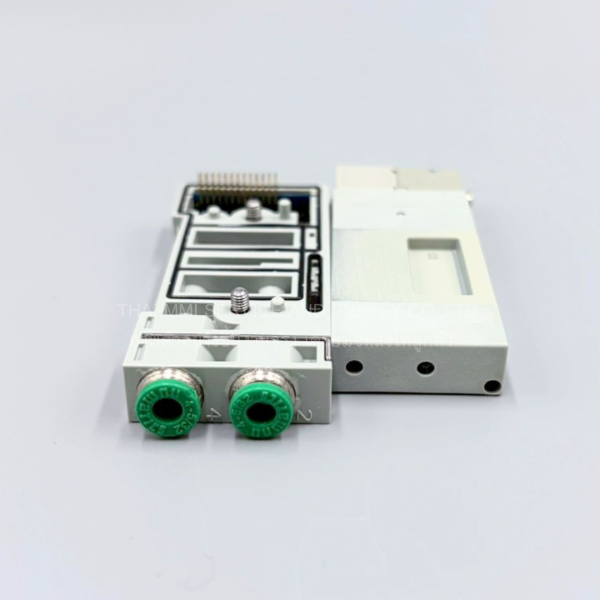

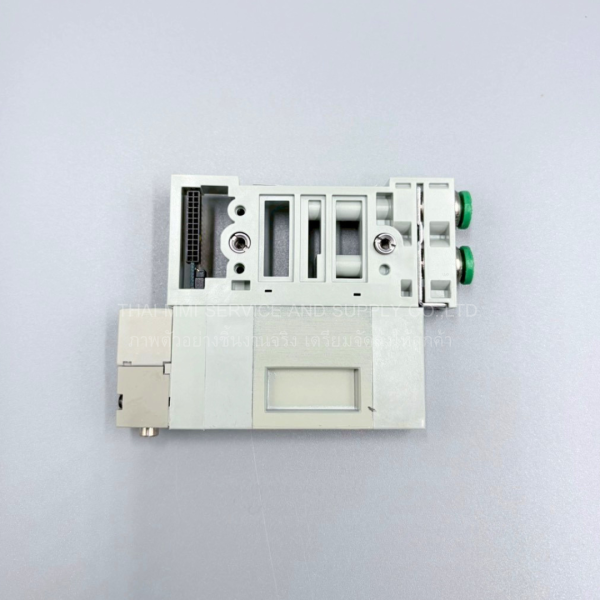

Aventics – Sol Pilot Valve (02DBW4Z3MK00061)

Manufactured :  Aventics

Product :  Pneumatic Solenoid Pilot Valve

Item Code:  02DBW4Z3MK00061



General Information

The Numatics/Aventics 2002 (02) series is a compact and lightweight series of valves available with various electrical connections and port types.

• 5 ported
• 2 and 3 positions
• 4-way
• spool & Sleeve
• CV: 0.20



Features

• Solenoid Air Pilot Actuated
• Low Current Requirements
• Elimination of Internal Wiring
• Pusher Piston? High Spool Shifting Force
• Modular Fieldbus Electronics and I/O
• Adjustable Port Sizes Utilizing Interchangeable Cartridge Fitting



Specifications

• Port Size :  5/32″ (4mm)
• Port Type :  Tube
• Control Function :  Single Solenoid Pilot
• Valve Function :  4 Way 2 Position – (5/2) Differental Air Return
• Voltage :  24 VDC
• Spool Type :  Spool & Sleeve
• Z Board Type :  Single “Z” Board
• Wiring :  Plug-In
