Description

BEKOMAT – 32U V BUILT-IN CONDENSATE DRAIN 4042091

Manufactured: BEKO Technologies

Product Type: Electronically Level-Controlled Condensate Drain

Product Tag: 4042091

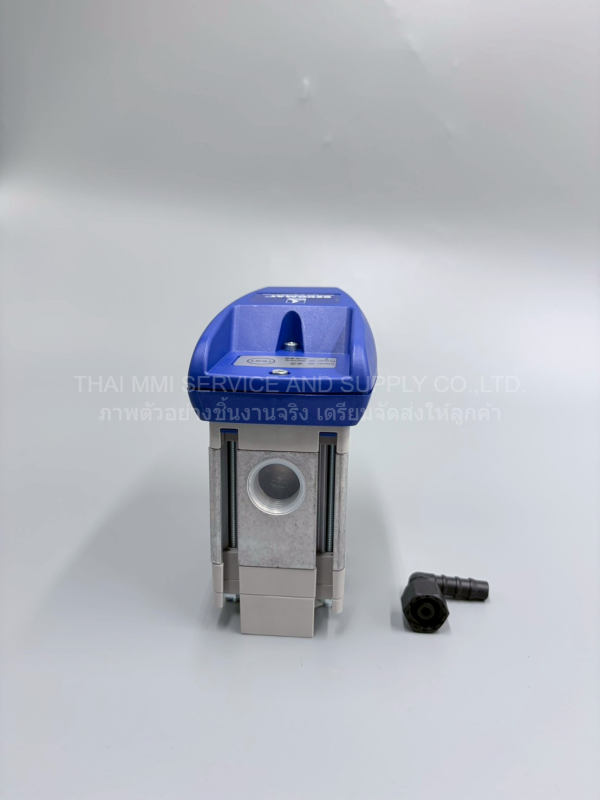

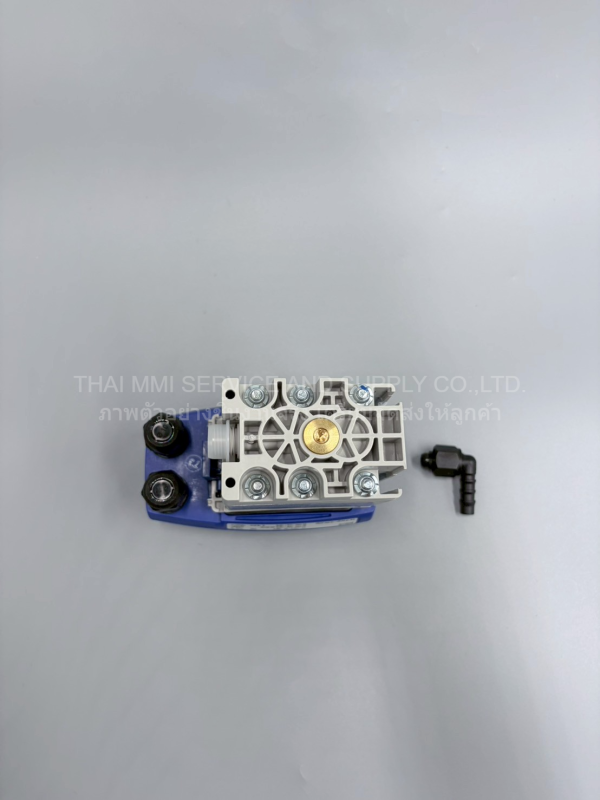

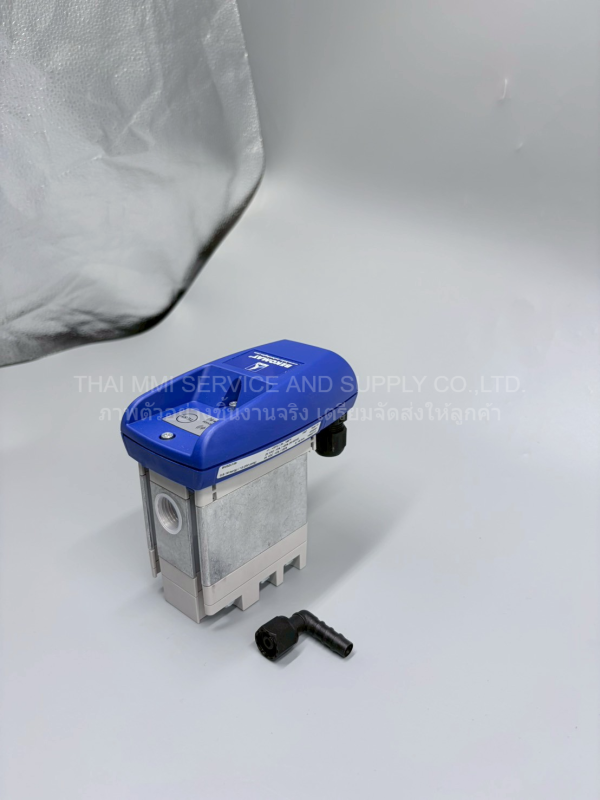

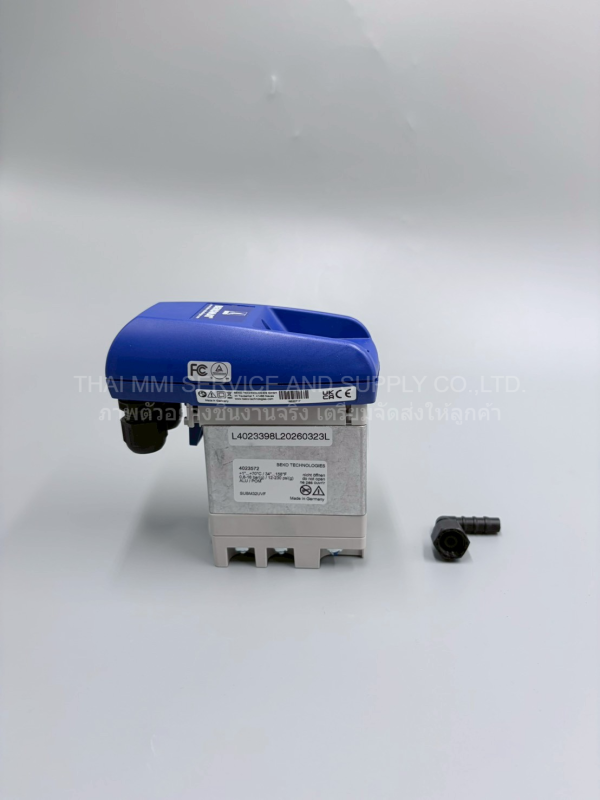

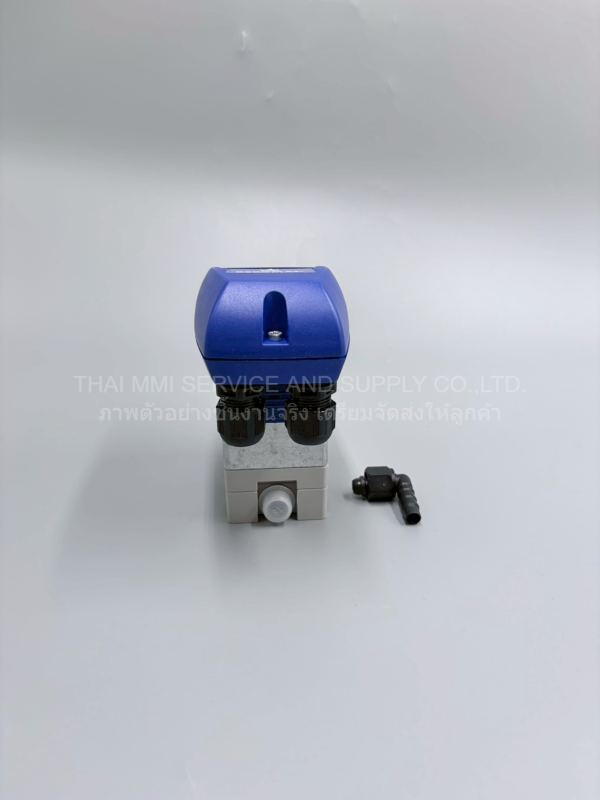

Model: BEKOMAT 32U V Built-In

General Information

The BEKOMAT 32U V 4042091 is a built-in, electronically level-controlled condensate drain designed for integration into compressed-air and compressor systems. This specific version operates with a low-voltage supply of 18–72 VDC or 24–48 VAC.

Condensate entering the BEKOMAT is monitored continuously by an integrated capacitive level sensor. When the specified liquid level is reached, the electronic control activates a pilot-controlled valve to discharge the condensate. The outlet closes again before unnecessary compressed air can escape.

Unlike conventional timer-controlled drains, the BEKOMAT responds to the actual condensate level. This operating principle enables automatic condensate discharge without unnecessary compressed-air loss.

Materials Information

• Main construction: Aluminium and glass-fibre-reinforced plastic
• Membrane material: FKM; the Edmac listing describes the material as FPM
• Cover colour: Blue
• Condensate compatibility: Oil-contaminated and oil-free condensate



Features

• Electronic, level-controlled condensate drainage.
• Integrated capacitive sensor for continuous liquid-level monitoring.
• Condensate discharge without unnecessary compressed-air loss.
• Pilot-controlled valve operation.
• Built-in configuration for integration into compressor equipment.
• Built-in versions are available without the standard connection adapter and external design shell.
• Passive alarm contact and external TEST function are available on the BEKOMAT 32U platform.
• OL control board with specified “power-on-drain” function.
• Replaceable service unit designed to simplify maintenance.
• Suitable for fluctuating condensate volumes.



Specifications

• Part Number: 4042091
• Product Version: BEKOMAT 32U V Built-In
• Installation Type: Built-in
• Supply Voltage: 24–48 VAC ±10%, 50–60 Hz / 18–72 VDC ±10%
• Power Consumption: 0.6–3 VA/W
• Operating Pressure: 0.8–16 bar(g)
• Ambient Temperature: +1°C to +70°C
• Condensate Inlet: G 1/2 internal thread

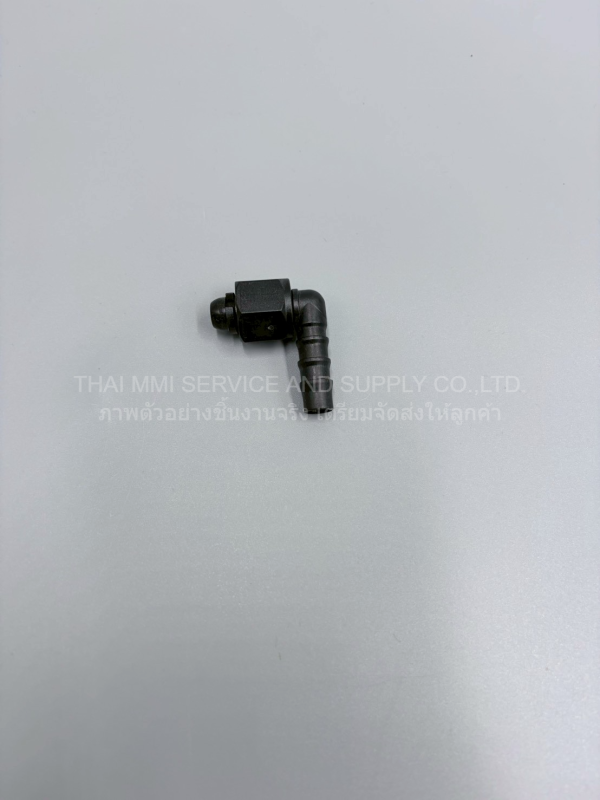

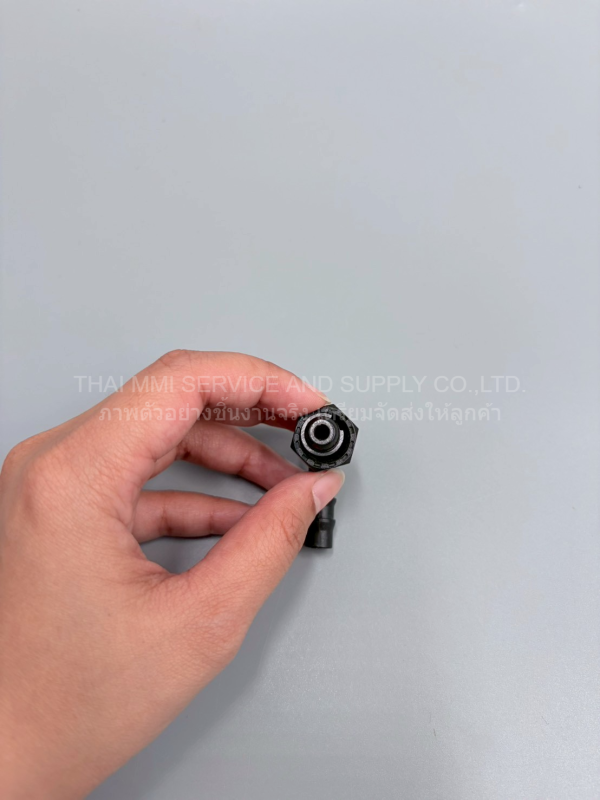

• Part-Specific Inlet Configuration: G connection with 90° angled fitting
• Condensate Outlet: G 1/4 with hose connector
• Recommended Outlet Hose: 8–10 mm internal diameter
• Net Weight: Approximately 1.0 kg
• Maximum Compressor Capacity: 6 / 5 / 3.5 m³/min
• Maximum Refrigeration Dryer Capacity: 12 / 10 / 7 m³/min
• Maximum Filter Capacity: 60 / 50 / 35 m³/min
