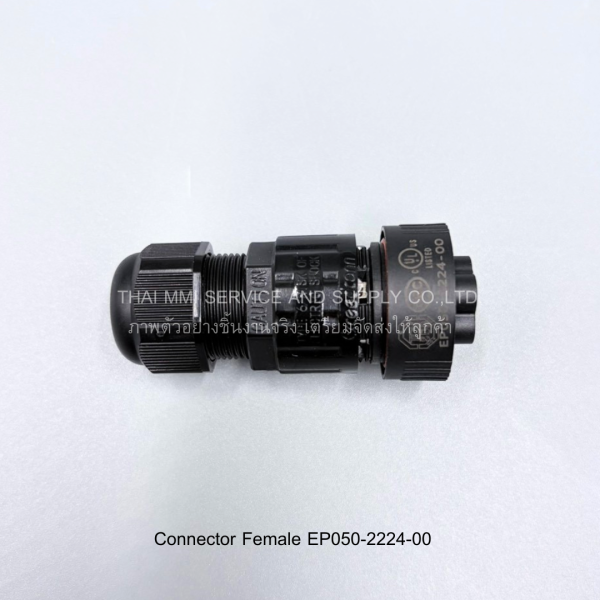

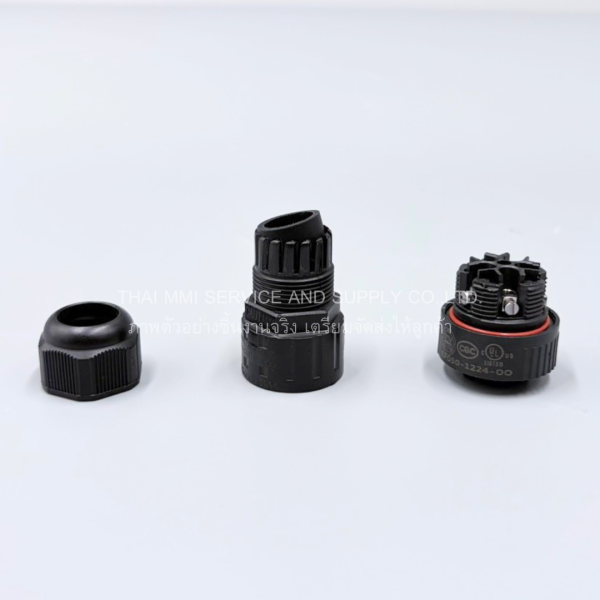

EXCEEDCONN – CABLE CONNECTOR FEMALE (EP050-2224-00)

Manufacturer: Exceedconn

Product name: Cable Connector Female

Model: EP050-2224-00

Series: EP-Connector

Order no.: 910002203



General Information: EXCEEDCONN – CABLE CONNECTOR FEMALE (EP050-2224-00)

Connector Type: Female waterproof cable connector

Number of Pins: 5 Pins

Cable Seal Dia.(mm): 11.5mm

Gross Weight / PCS: 20.854g/PCS

Rated Voltage: 450V AC(TUV/CQC) 300V AC(UL)

Rated Impulse Voltage: 2500V

Rated Current: 15A

Contact Resistance: ≤10mΩ

Insulation Resistance: ≥1000MΩ

Cable Retention: OD:5.5~9.0,F≥80N;OD:9~12,F≥100N;OD:12~12.5,F≥120N;

Connector insertion force/Pullout force: ≤80N

Connector Insert and pullout frequency: 500

Cable Cross Section: 0.5~1.5mm²

Protection Degree: IP68 1m-1H

Ambient Temperature: -40℃~+85℃

Glowing wire (insulator): 960℃

Flammability class(Insulator): UL94 V-2

Material: Plastic PA66 and PA66 30%GF

Conductor: Copper Alloy with Ni Plating

Sealing element: Silicone

Connecting Screw: Iron Alloy Ni Plating

Screw Type: Straight Screw



Product Features

1.  IP68 waterproof protection for reliable operation in wet, dusty, and demanding environments

2. 5-pin female connector designed for secure and stable electrical connections

3. Supports up to 15 A rated current and 450 VAC rated voltage

4. High insulation resistance ≥1000 MΩ for enhanced electrical safety

5. Low contact resistance ≤10 mΩ for efficient current transmission

6. Wide operating temperature range from -40°C to +85°C

7. Supports 0.5–1.5 mm² cable cross sections

8. Durable housing made from PA66 and glass-fiber reinforced PA66

9. Nickel-plated copper alloy conductor for good conductivity and corrosion resistance

10. Silicone sealing element provides reliable waterproof performance

11. Designed for up to 500 insertion and withdrawal cycles

12. Strong cable retention performance for secure installation

13. UL94 V-2 flame-retardant insulation with 960°C glow-wire resistance

14. Suitable for indoor and outdoor applications, including LED lighting and industrial electrical systems
