Description

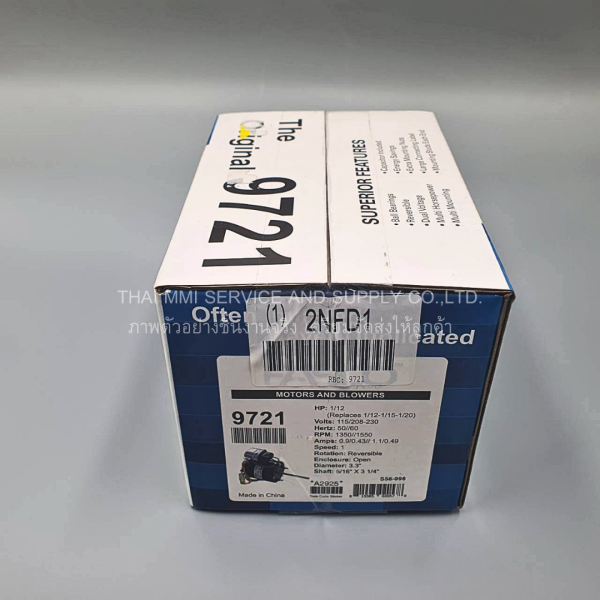

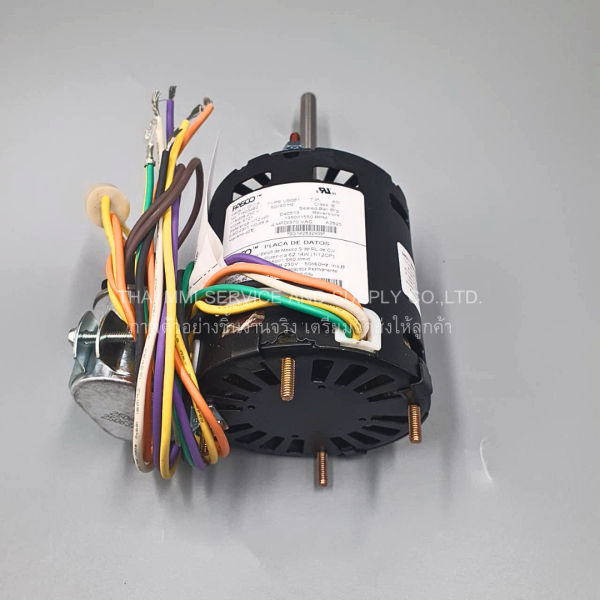

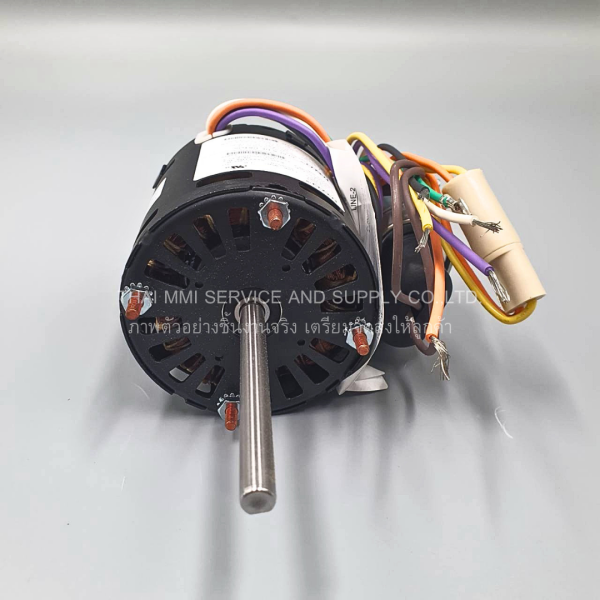

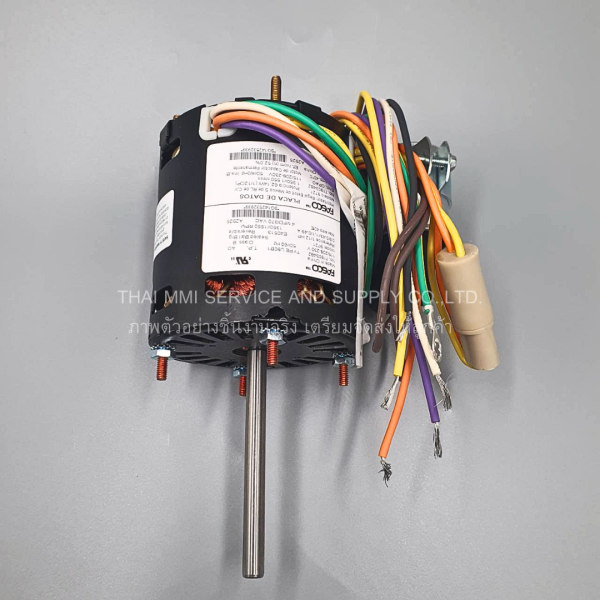

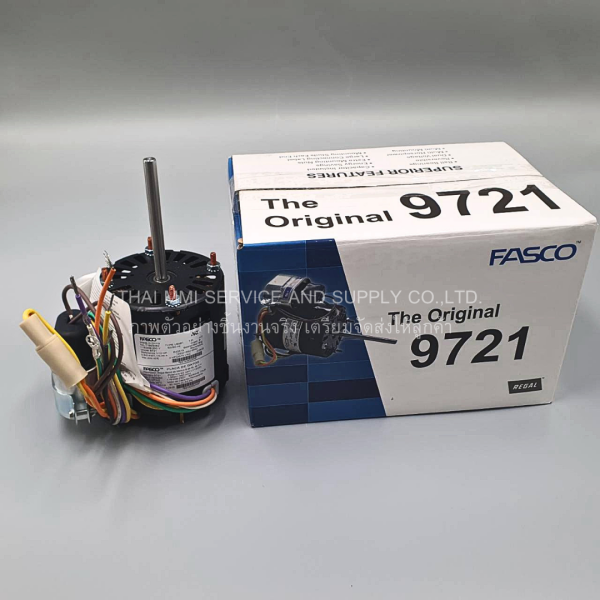

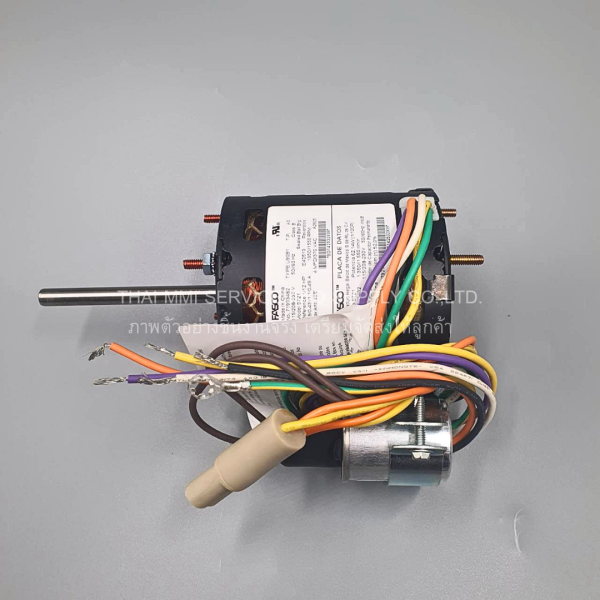

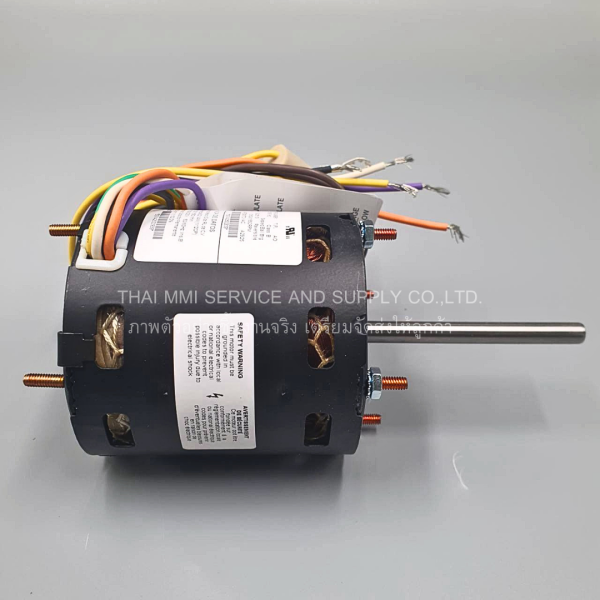

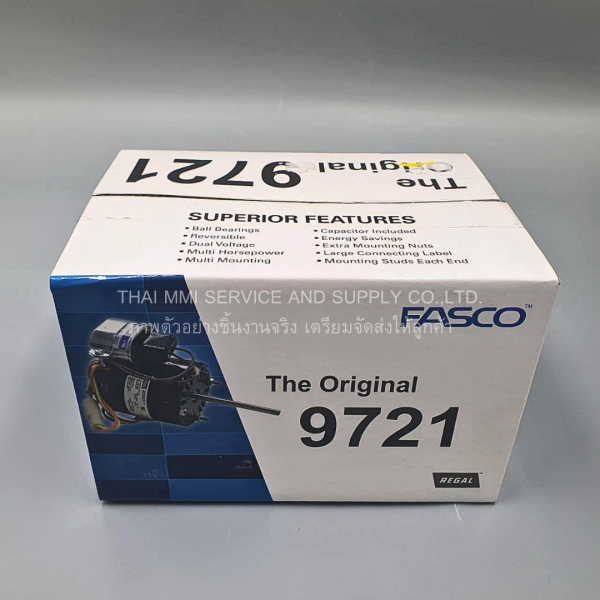

FASCO – HVAC MOTOR 1/12 HP (9721)

Manufacturer: FASCO

Category: Electrical

Item name: HVAC Motor

Item full description: HVAC Motor, 1/12 HP

Model: 9721

Type: U90B1



General Information: FASCO – HVAC MOTOR 1/12 HP (9721)

These direct drive blower AC motors have threaded studs in the exterior housing that secure the motor to a mounting surface, such as a bracket or frame.

Permanent Split Capacitor is a single-phase motor, also called PSC, with a capacitor that starts and runs the motor for high efficiency in low-horsepower applications.

Single Phase is the most common form of a two-wire AC power supply that consists of one power wire and one neutral wire, often used in electrical outlets in homes.

Open Air Over has ventilation holes that cool the motor with external air.

Auto is a thermal overload protection device that shuts off an overheated motor and automatically resets to restore power to the motor when it has sufficiently cooled, making it well suited for remote or unattended machinery.

60 Hz operates at an AC waveform frequency of 60 cycles per second. This frequency is common in North America.

B insulation class withstands temperatures up to 266°F (130°C).

CW/CCW shaft rotation is adjustable. The direction of rotation can be determined in the field.



Product Features

1.  1/12 HP Refrigeration Motor – Designed for reliable fan and blower applications.

2. Dual Voltage Operation – Supports 115 / 208–230 VAC for flexible installation.

3. 60 Hz Single-Phase Design – Suitable for standard refrigeration and ventilation systems.

4. Up to 1,550 RPM – Provides dependable performance for air-moving applications.

5. CW/CCW Rotation – Reversible shaft rotation for greater application flexibility.

6. Ball Bearing Construction – Supports smooth operation and improved durability.

7. Automatic Thermal Protection – Helps protect the motor against overheating.

8. Open Air Over Enclosure – Designed for applications with continuous airflow around the motor.

9. Stud Mounting Configuration – Provides secure and convenient installation.

10. CSA Certified & UL Recognized – Meets recognized safety and performance standards.
