Description

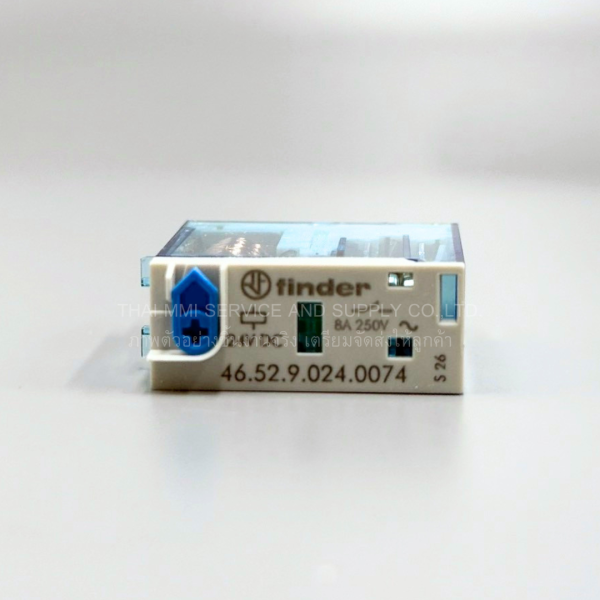

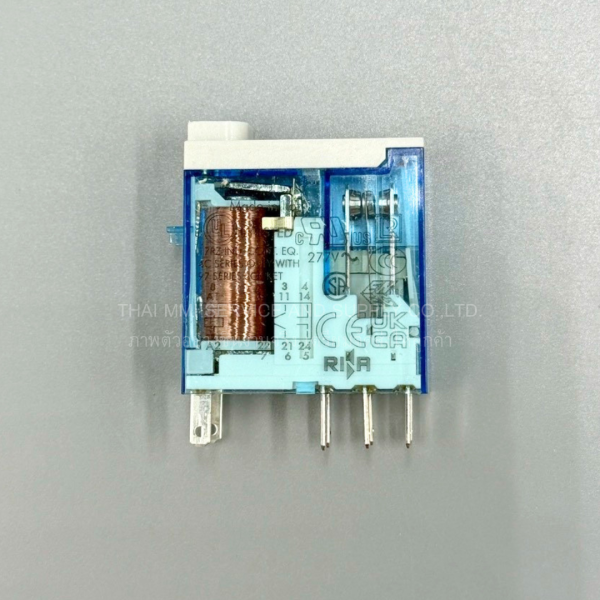

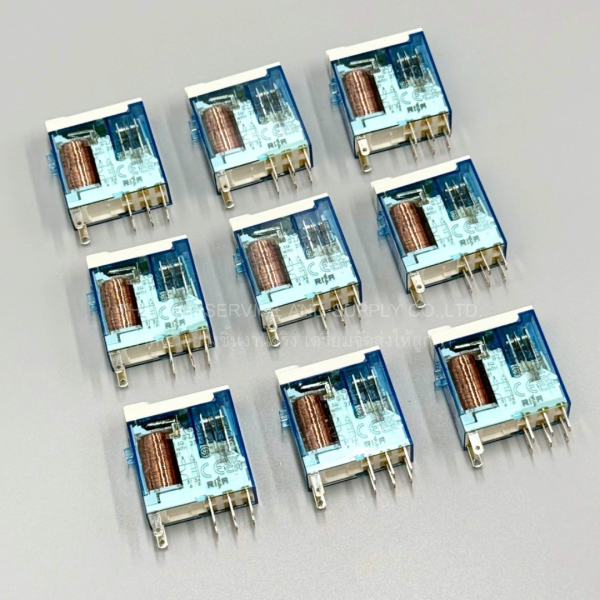

Finder – Power Relay 46.52.9.024.0074

Manufacturer:  Finder Relays

Product:  Power Relays Over 2 Amps

Series:  46

Part Number:  46.52.9.024.0074



Datssheet for “Finder – Power Relay 46.52.9.024.0074”

Featured:  Lighted Indicator, Mechanical Indicator, Test Button

Mounting Type:  Socketable

Coil Voltage:  24VDC

Contact Form:  DPDT (2 From C)

Counting Rating (Current):  8 A

Switching Voltage:  440VAC – Max

Load – Max Switching:  3520VA

Coil Current:  20 mA

Coil Type:  Non Latching

Termination Style:  Plug in, Quick Connect – 0.110″ (2.8mm)

Must Operate Voltage:  17.5 VDC

Must Release Voltage:  4.8 VDC

Operate Time:  10 ms

Release Time:  3 ms

Operating Temperature:  -40°C ~ 70°C

Contact Material:  Silver Nickle (AgNi)

Relay Type:  General Purpose

Coil Resistance:  1.2 kOhms

Base Product Number:  46.52.9
