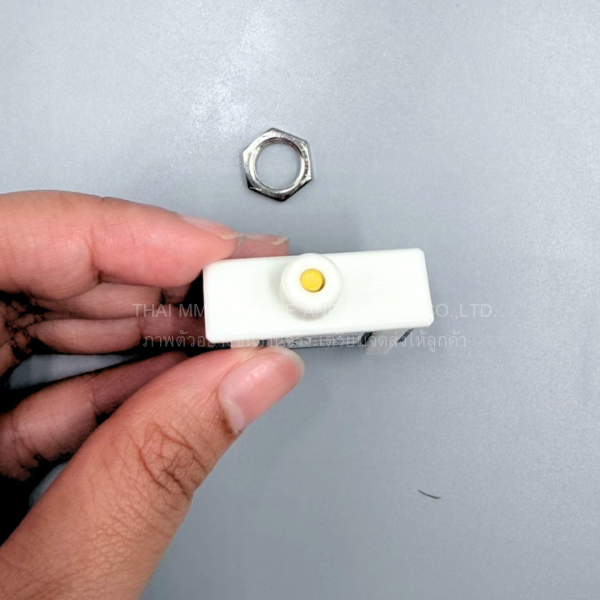

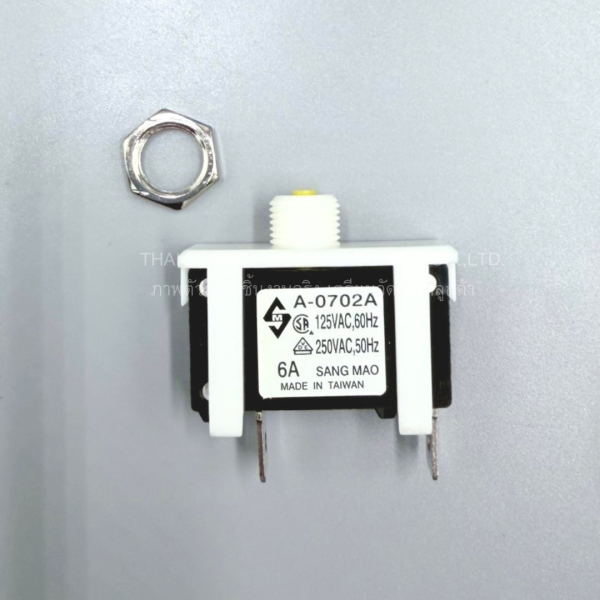

Sang Mao – A-0702A Thermal Circuit Breaker

Manufactured:  Sang Mao

Product:  Thermal Circuit Breaker

Model:  A-0702A



General Information

• Product Name: Miniature Circuit Breaker / Overload Protector
• Place of origin: Taiwan
• Brand: Sangmao
• Model Number: A-0702A
• Current: 1 – 20 A
• Voltage 12 VDC / 125 VAC / 250 VAC
• Reset: Manual Push Reset
• Certificate: CSA / VDE / CSA c/us



Specifications

• Standard Rating: 1-20 A
• Input power: 12VDC / 125VAC / 250VAC
• Dielectric Strength: 1500VAC / 1 mins
• Rating conditional short-circuit current: TEC-934 “PC.1 1000A” with ” fuse 16 A gL/gG
• Insulation Resistance: > 100 MΩ
• Reset: Manual push reset



Approvals

• CSA Approval: 2 – 15A 125VAC, 60Hz TC2, OL0, SC:C1,1kA,125VAC
• VDE Approval: 2 – 16A 250VAC
• CSA c/us Approval: 2 – 15A 125 VAC / 60 Hz
