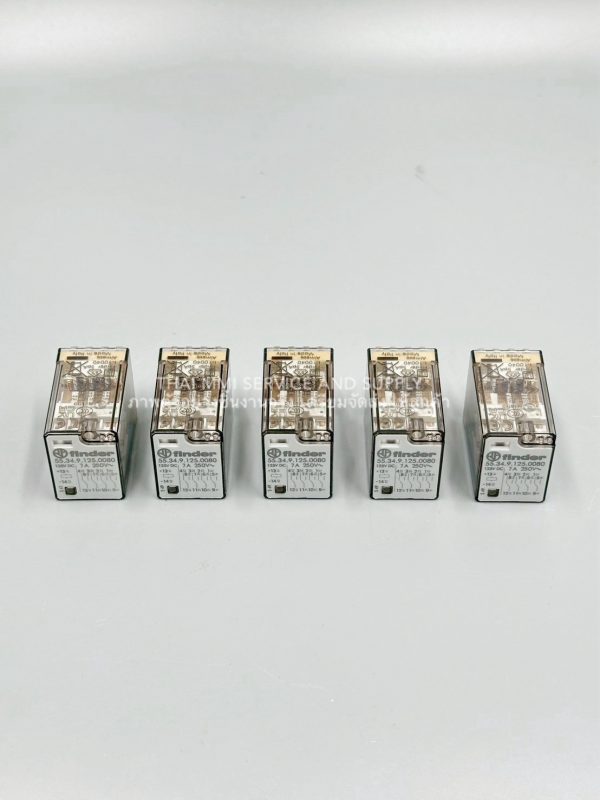

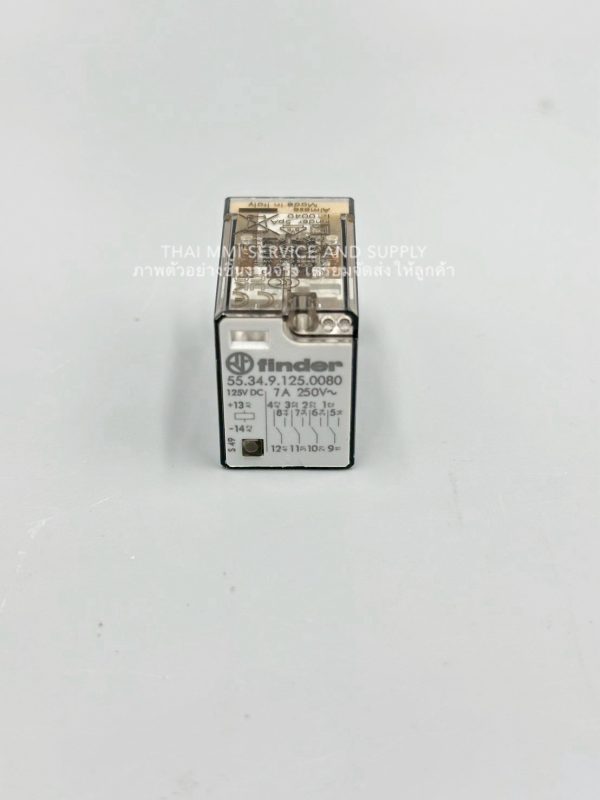

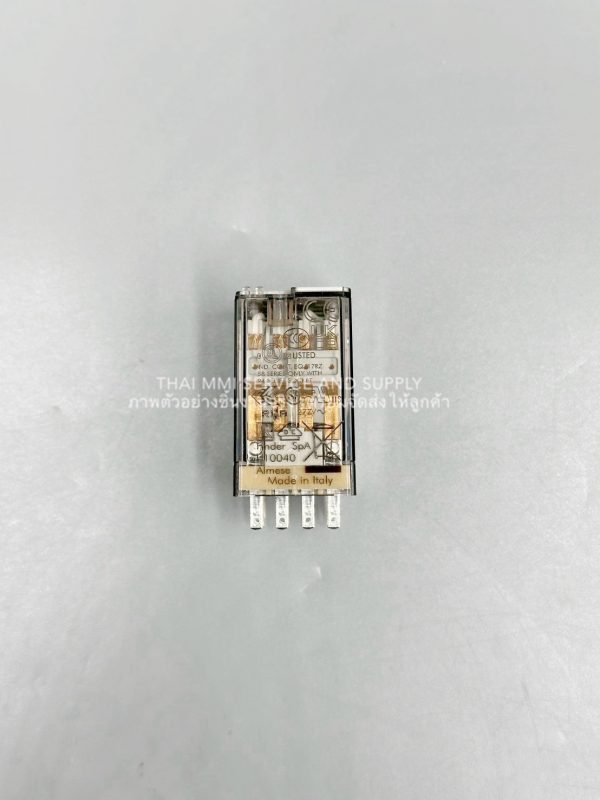

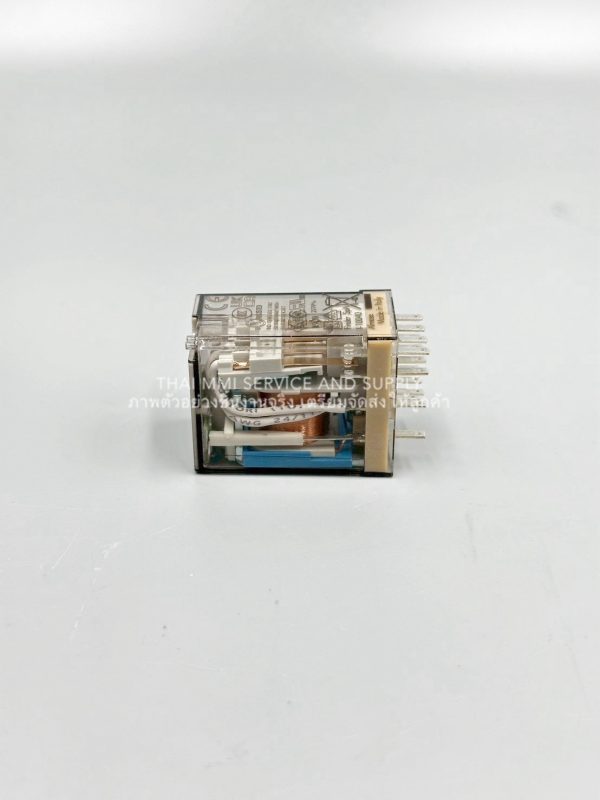

Finder – Relay 55.34.9.125.0080

Manufactured: Finder

Category: Relay

Model: 55.34.9.125.0080

Description: Relay Gen Purpose 4PDT 7A 125V , Finder Relay 55.34.9.125.0080 general purpose 4PDT 7A 125V relay for industrial control panels. Reliable performance, LED indicator, lockable test button, socket mounting, EMC options, durable cadmium free contacts..



General purpose relays For sockets mounting

• Type 55.31  – 4 CO 7 A
• AC & DC coils
• Lockable test button and mechanical flag indicator as standard on 2 & 4 pole types
• Integral LED and  coil suppression options 94 series sockets for PCB or 35 mm rail mounting (EN60715) with Screw, Screwless or Push-in terminals
• Coil indication and EMC suppression modules 99 series and Timer module 86.30 options
• Optional alternative mounting adaptors
• UL Listing (certain relay / socket combinations)
• Cadmium Free contacts
• Contact material options
• European Patent



Contact Specification

• Contact Configuration :  4 CO (4PDT)
• Rated current / Maximum peak current (A) :  7/15
• Rated voltage / Maximum switching voltage (VAC) :  250/250
• Rated load AC1 (VA) :  1750
• Rated load AC15 (230 VAC) (VA) : 350
• Single phase motor rating (230 VAC) (kW) :  0.24
• Breaking capacity DC1 : 24/110/220V (A) :  7/0.5/0.25
• Minimum switching load mW(V/mA) :  300 (5/5)
• Standard contact material :  AgNi



Coil Specification

• Rated power AC/DC (VA/50Hz/W) :  1.5/1
• Operating (AC) :  (0.8 … 1.1) Un
• Operating (DC) :  (0.8 … 1.1) Un
• Holding voltage (AC/DC) :  0.8 Un / 05. Un
• Must drop out voltage (AC/DC) :  0.2 Un / 0.1 Un



Technical Data

• Mechanical life AC/DC (cycles) :  20· 10⁶  /  50 · 10⁶
• Electrical life at rated load AC1 (cycles) :  150 · 10³
• Operate / release time (ms) :  9/5
• Insulation between coil and contacts (1.2/50 μs) /  (kV) :  4
• Dielectric strength between open contacts (VAC) :  1000
• Ambient temperature range (°C) :  -40 …. +85
• Environmental protection :  RT I
