NJXL – OPCT10ATL Clamp Current Transformer
- Description
Description

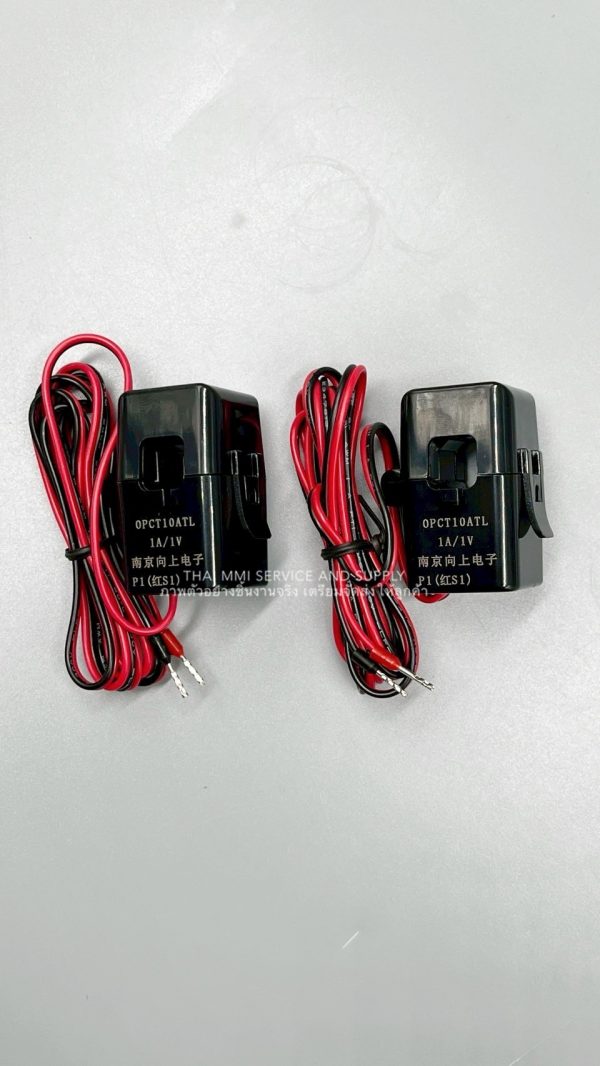

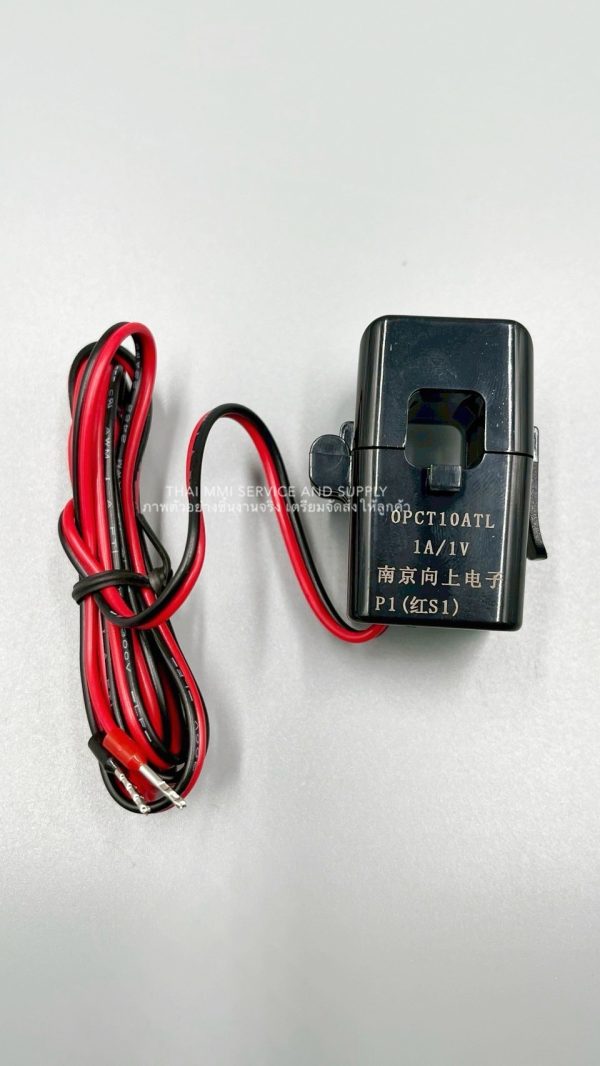

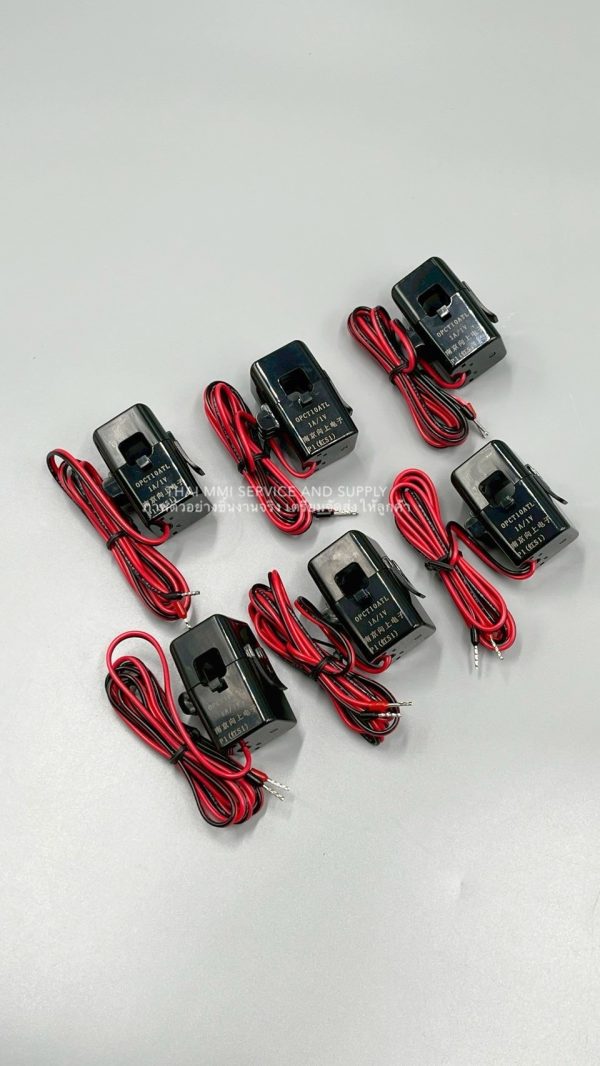

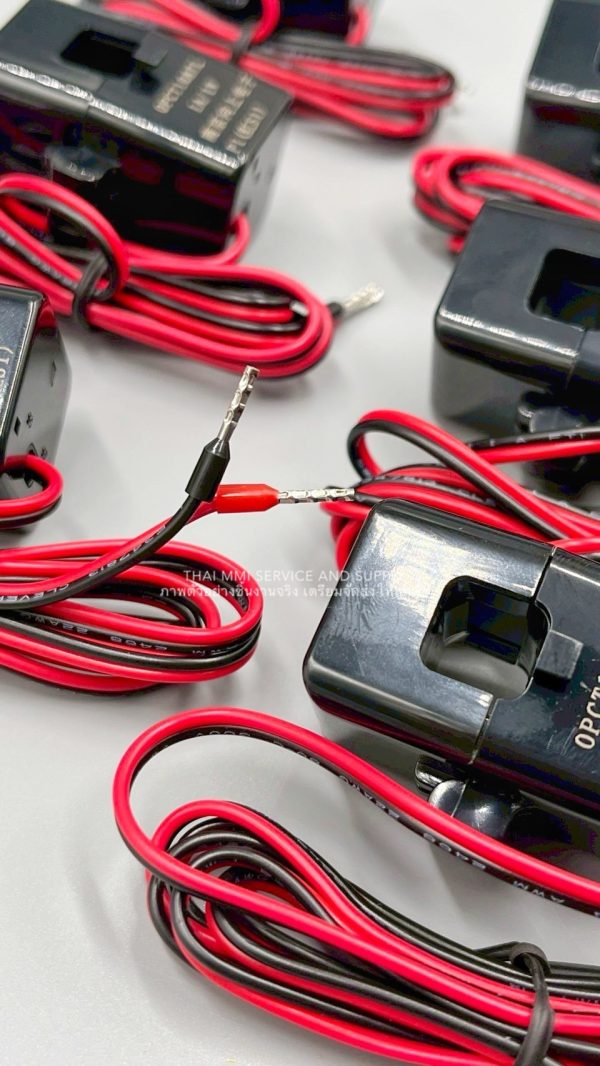

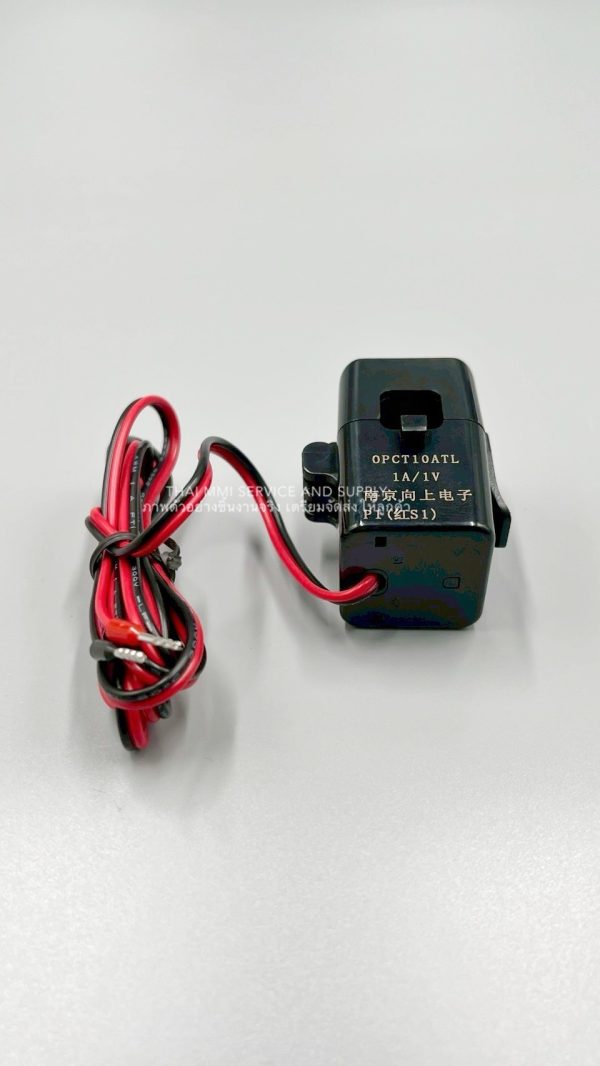

NJXL – OPCT10ATL Clamp Current Transformer
Manufactured: NJXL
Product Type: Clamp Current Transformer
Model: OPCT10ALT
OPCT10ATL (mA) Split Core Current Transformer
Flame retaedant properties: UL94-V0
Insulation resistance: Normal than 500 MΩ
Work voltage: 0.66 / 0.72 kV
Compressive strength: 2kV/50Hz/1min
Work frequency: 50Hz ~ 200 KHz
Operating temperature: -30°c ~ +70°c
Used for: Power project renovation, Power monitoring, Load current detedtion
Installation way: Busbar perforation. RJ12 network port output, fixed with cable ties on both sides
Specification
Note: Current transformers are prohibited from being used in open circuits, also can’t be connected to fuse. Please connect the output of the transformer first, and the clamp the transformer on the bus under test.
