Description

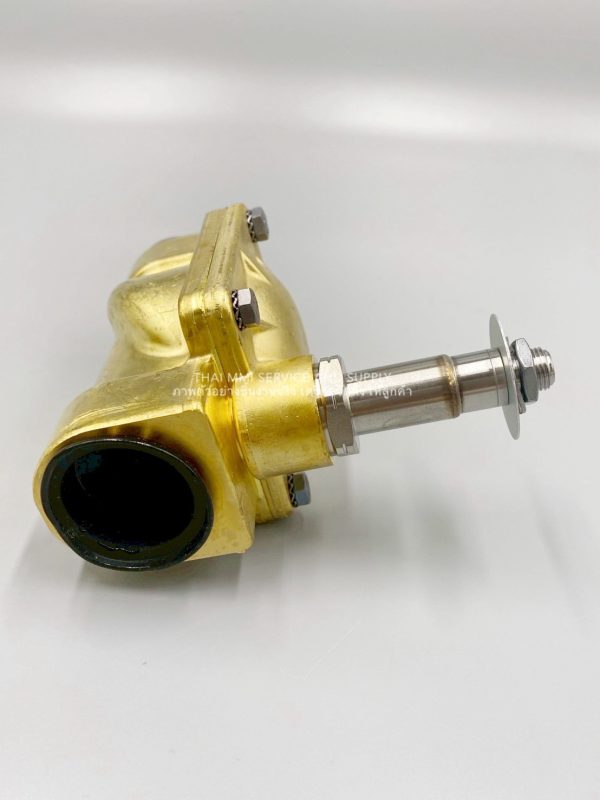

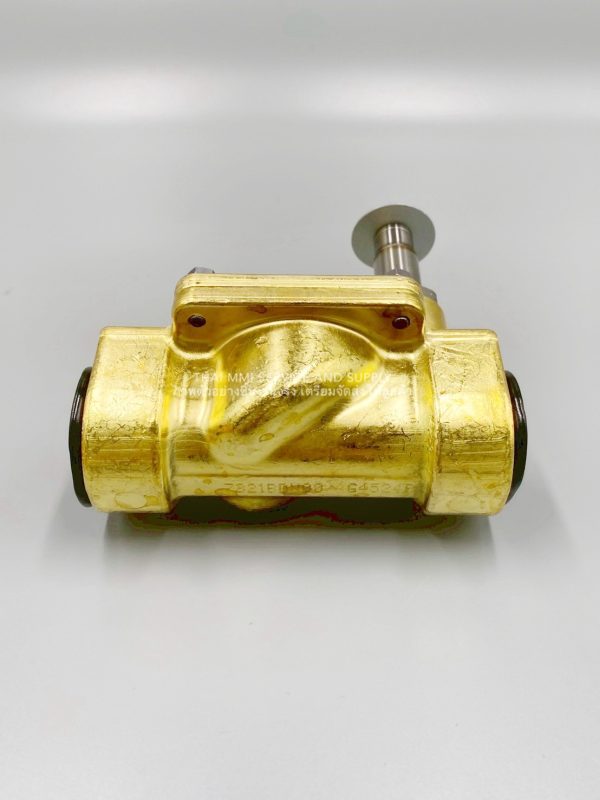

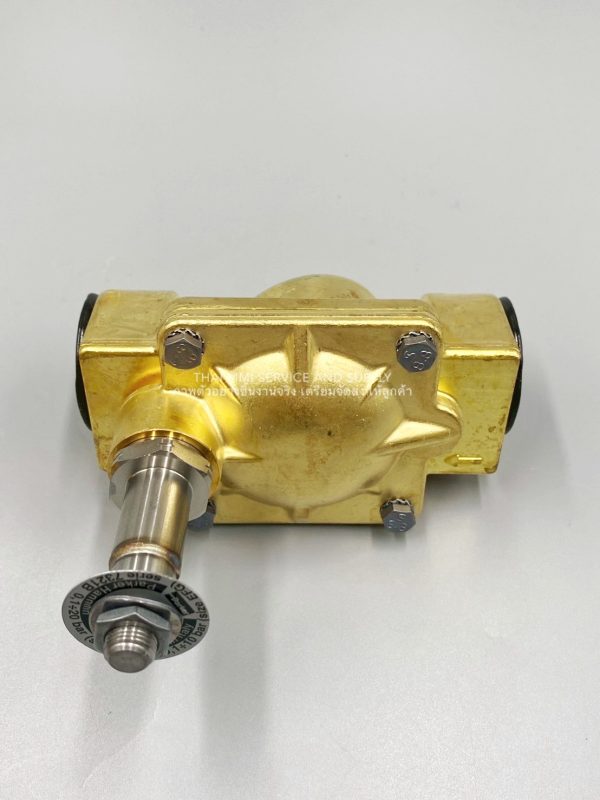

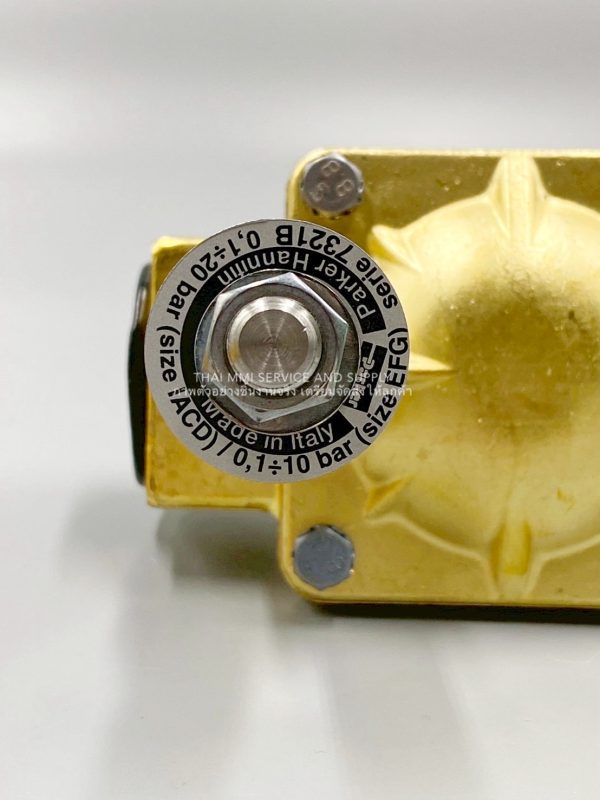

PARKER – Solenoid Valve Series 7321B

Manufacturred:  Parker

Product Catogory:  2 Way Solenoid Valve With DIN Plug

Valve Type:  7321BDN00



Description

7321B 2/2 pilot operated valves are the best solution anywhere a perfect control media , such water, steam, and light oils, is required. This product line provides a high flow rate, a fast reaction time, and a superior reliability in a robust and modern design. Our 7321B Series can be associated with the most of our FCSE coil ranges, including ATEX, and IP67 electrical parts.



Specification  – 2 Way Pilot Operated (Brass Pipe Mounting, Normally Closed)

• Port Size (BSP) :  1″
• Orifice Ø mm :  25
• Flow Factors (Kv l/min) :  160
• Flow Factors (Kv m3/h) :  9.6
• Flow Factors (Qn m3/h) :  –
• Operating Pressure Differential Min (bar) :  0.1
• Operating Pressure Differential Max (MOPD) (AC bar) :  20
• Operating Pressure Differential Max (MOPD) (DC bar) :  20
• Fluid Temperature (Min °C) :  -10
• Fluid Temperature (Max °C) :  90
• Seat Seal :  NBR
• Parker Valve (Valve Order Number) :  443786W

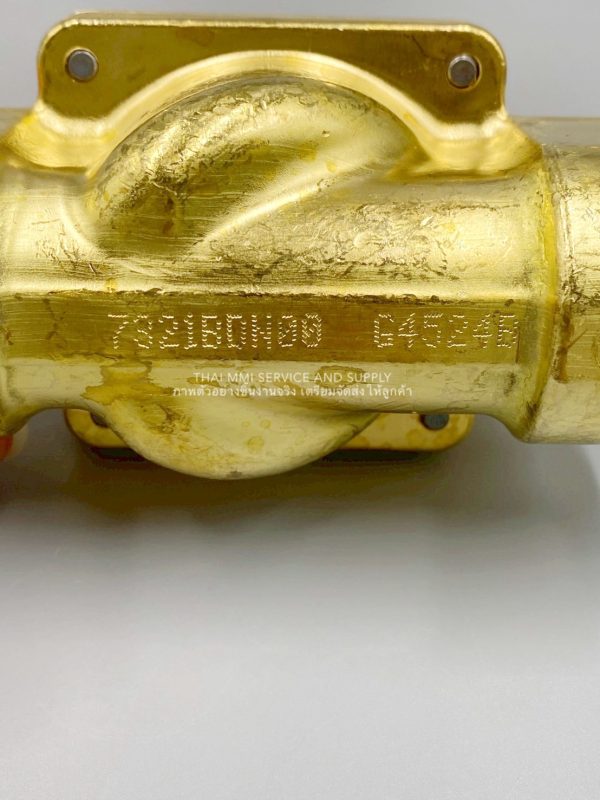

• Parker Valve (Valve Type) :  7321BDN00
• Parker Valve (Coil Type) :  481865
• Power (AC, W) :  8
• Power (DC, W) :  9
• Coli Group :  2.0

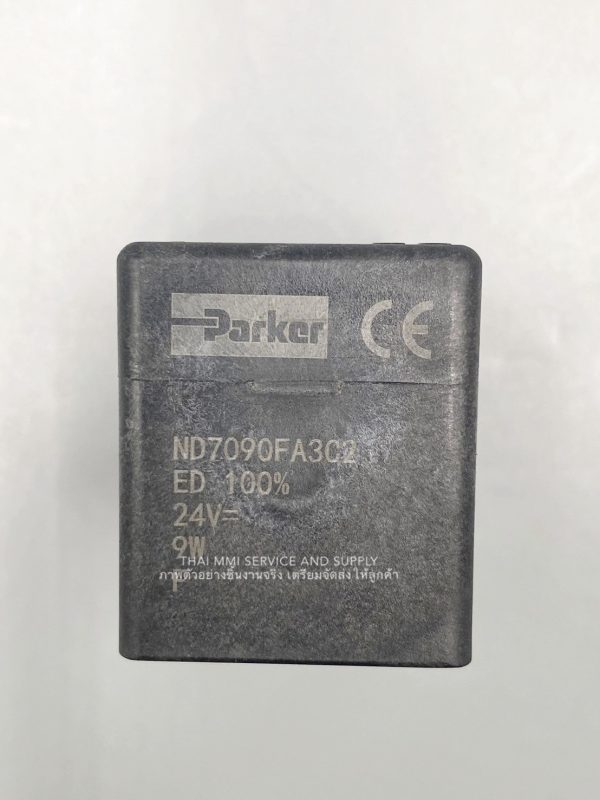

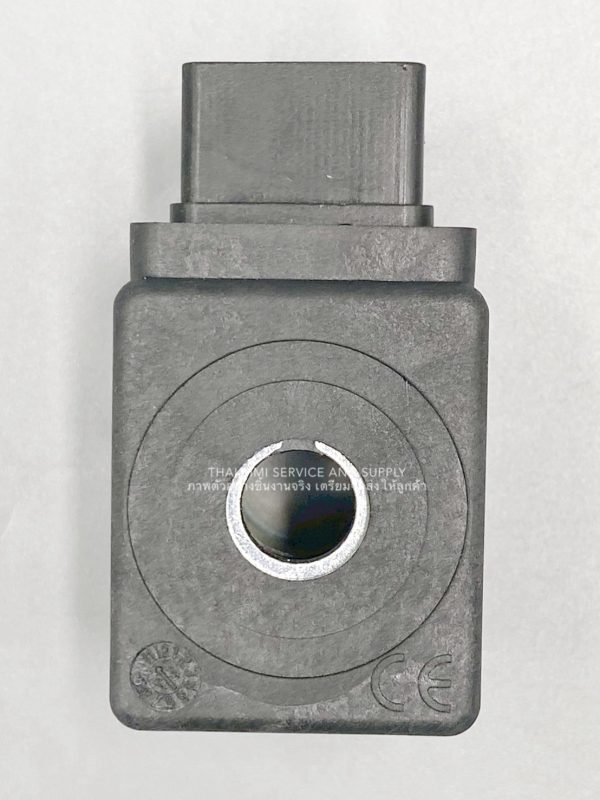

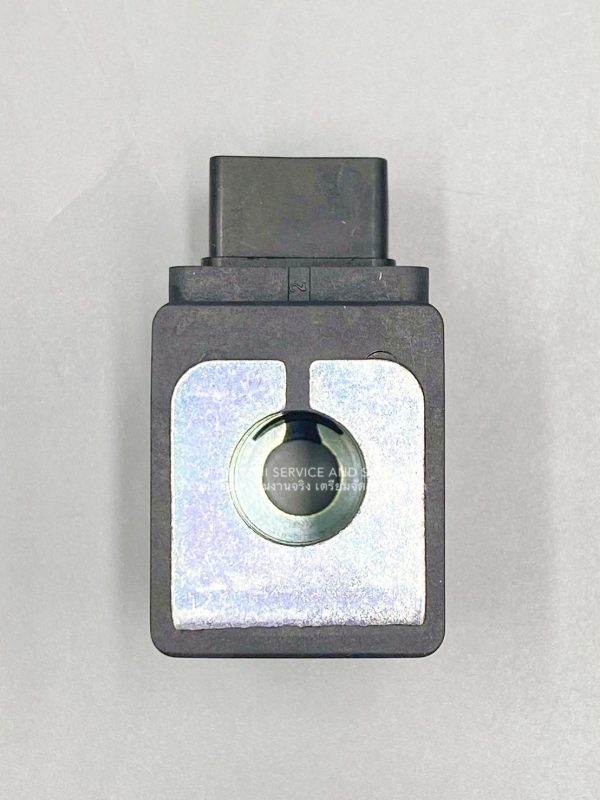

Specification  – Coli For DIN Plug Connection

• DIN Plug (Standard) :  481865
• Coil Group :  2.0 / 2.1
• Degree of protection :  IP65 according to IEC / EN 60529 standards (with DIN plug)
• Class of Insulation :  F 155°C

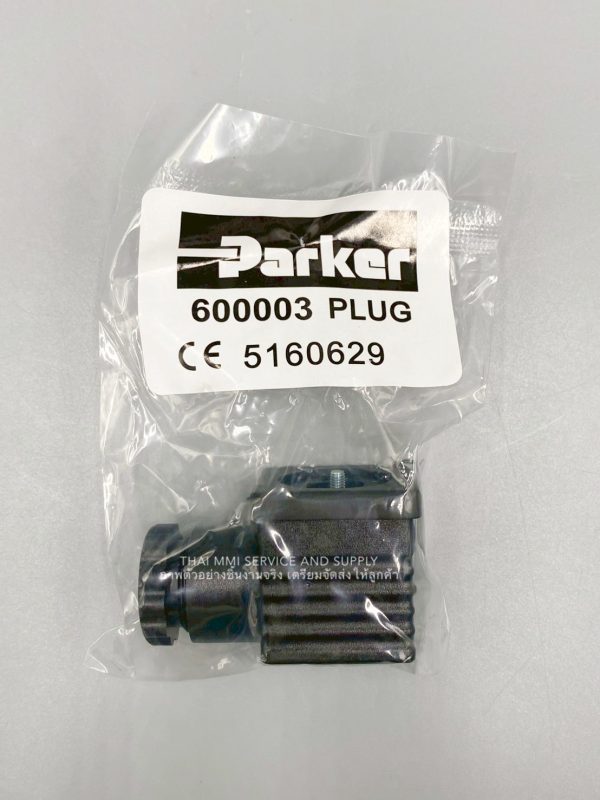

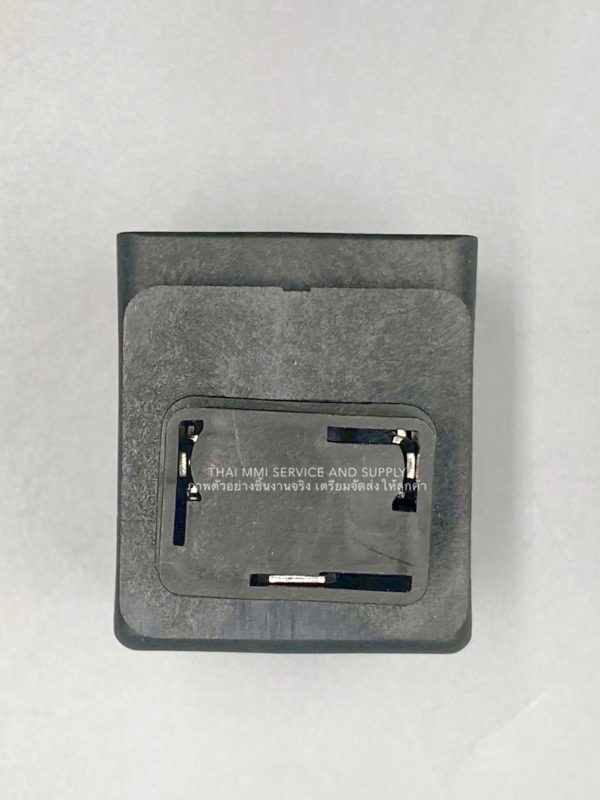

• Electrical Connection :  The coil is connected with a 2 P + E plug according to EN 175301-803 type A
• Ambient Temperature :  -40°C to +50°C The application is limited also by the temperature range of the valve.
• Weight :  130 g (without plug)
• Voltage (VDC) :  24
• Code :  C2
