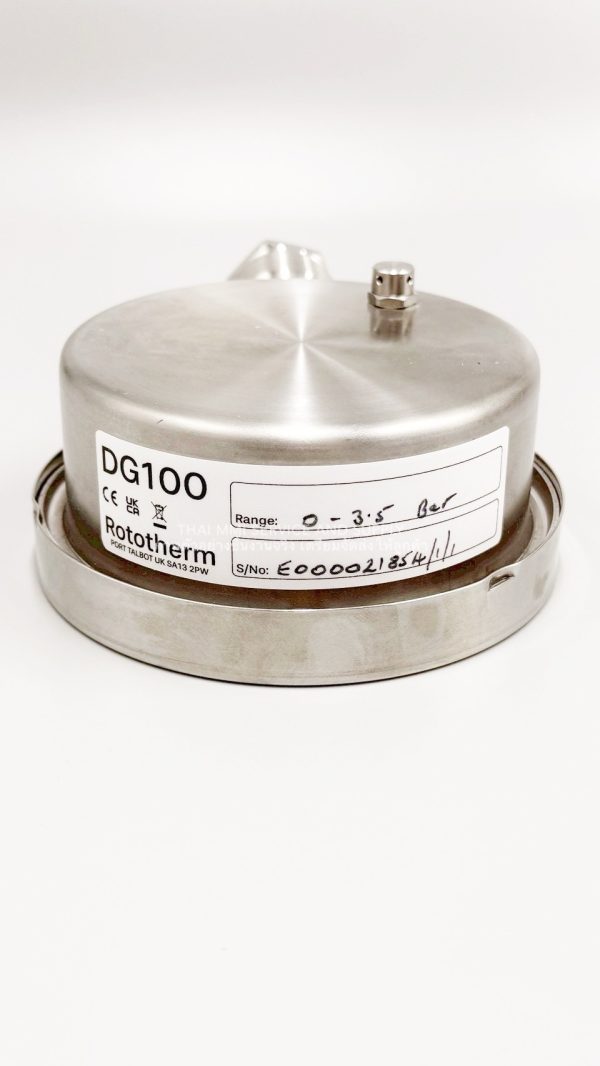

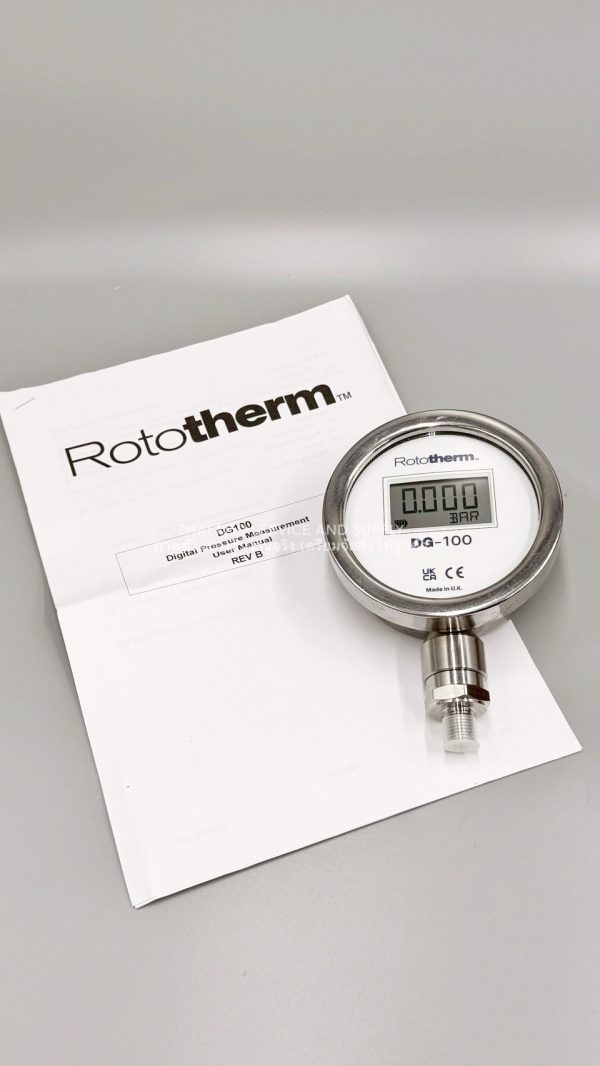

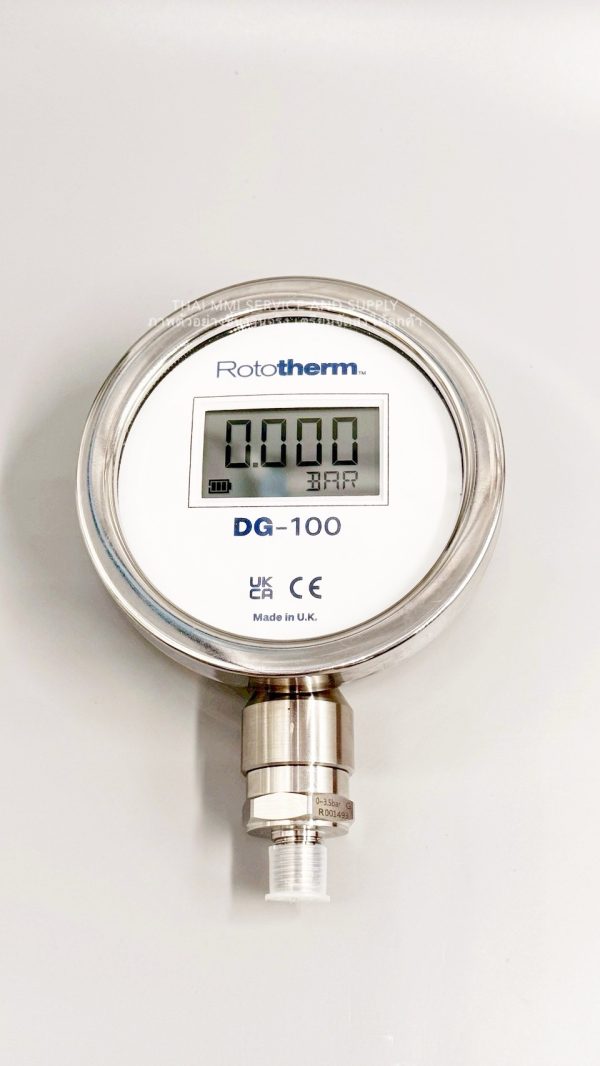

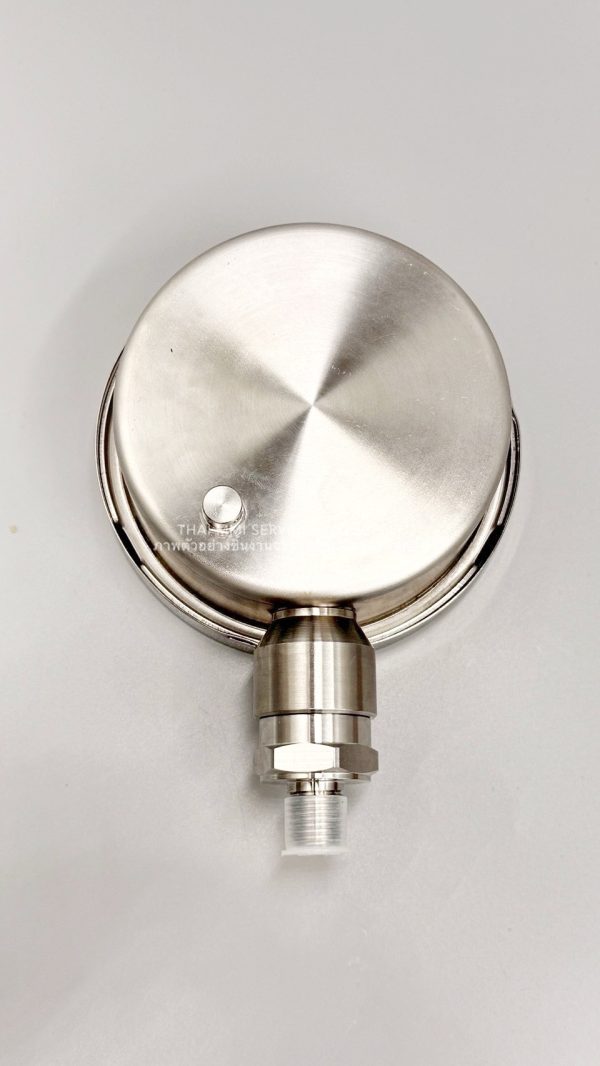

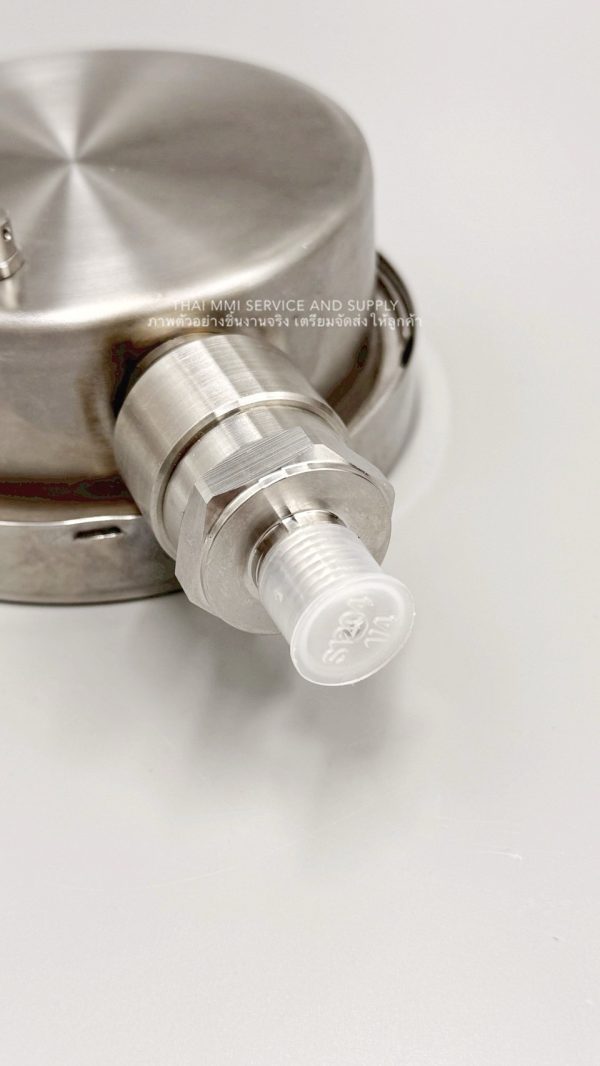

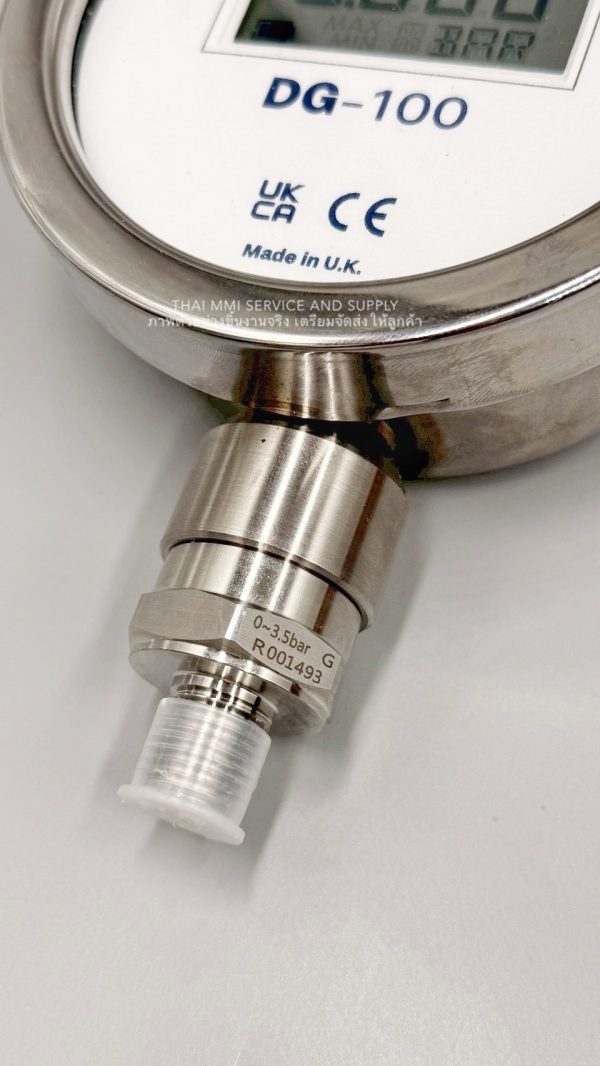

ROTOTHERM – Digital Pressure Gauge DG100 Serie

Manufactured:  Rototherm

Product:  Digital Pressure Gauge

Model:  DG100 Serie



Description

High accuracy and a 4 digit display enables the DG100 to be used as a digital standard test gauge, replacing less accurate, sometimes fragile analogue test gauges. The instrument is also capaable of highly accurate pressure measurement in critical process area. For hazadous area applications the ATEX certified intrinsically safe DGX100 can be specified.

All DG100 instruments can be supplied with a factory traceable calibration certificate, UKAS calibration certificates can also be supplied where required.

Covering a wide range of test and measurement applications, with pressure ranges available from vacuum to 1000 barg and 0/4 bar absolute, the DG100 can be supplied with a range of threaded process connections. Chemical seals can be fitted for particularly corrosive, viscous or crystallising fluids or for hygenic applications.

DG100 Digital Pressure Gauge are calibrated in a controlled environment at 20°C (+/-) 3°C. Temperature compensated sensors are fitted as standard to automatically correct zero and span drift.



Features

• High Accuracy (+/-) 0.2% full scale
• Stainless steel IP65 case
• Stainless steel wetted parts
• Long battery life – 1 year continuous operation from 1 x 3.6V AA battery
• Wide Selection of pressure ranges from vacuum to 1000bar
• Absolute pressure ranges available up to 40Bar
• Selection of pressure unit :  bar, psi. mbar, kPa, MPa, kg/cm3 , inHg, Metres Hd
• DGX100 ATEX Certified Intrinsically safe versions available.
• ATEX certified (intrinsically safe):  II 1G Ex ia IIC T4 Ga Ta (-20°C to 60°C)

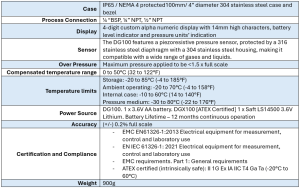

Technical Specification
