Description

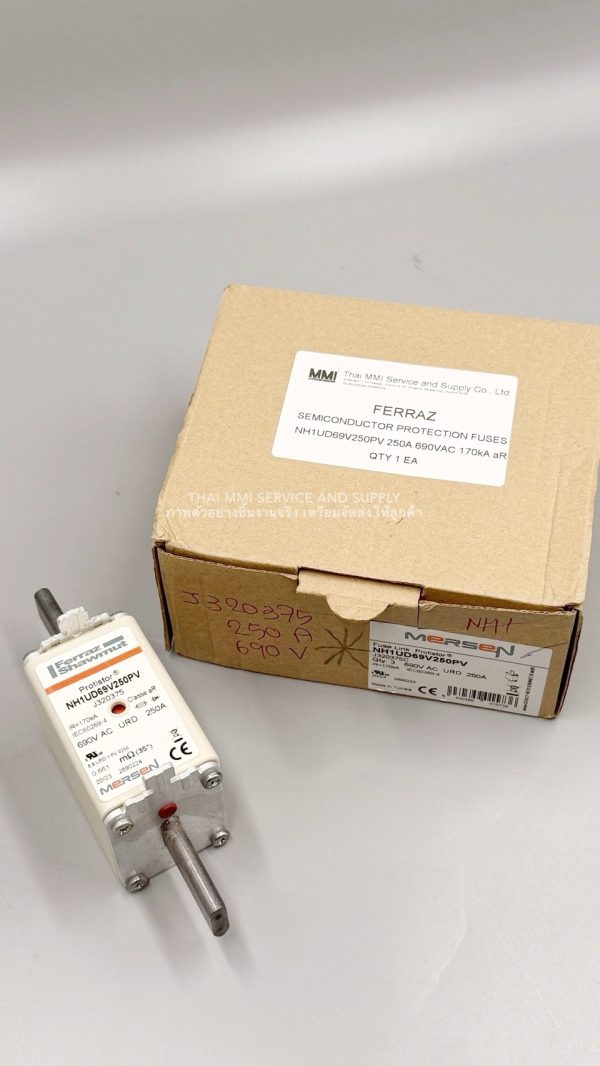

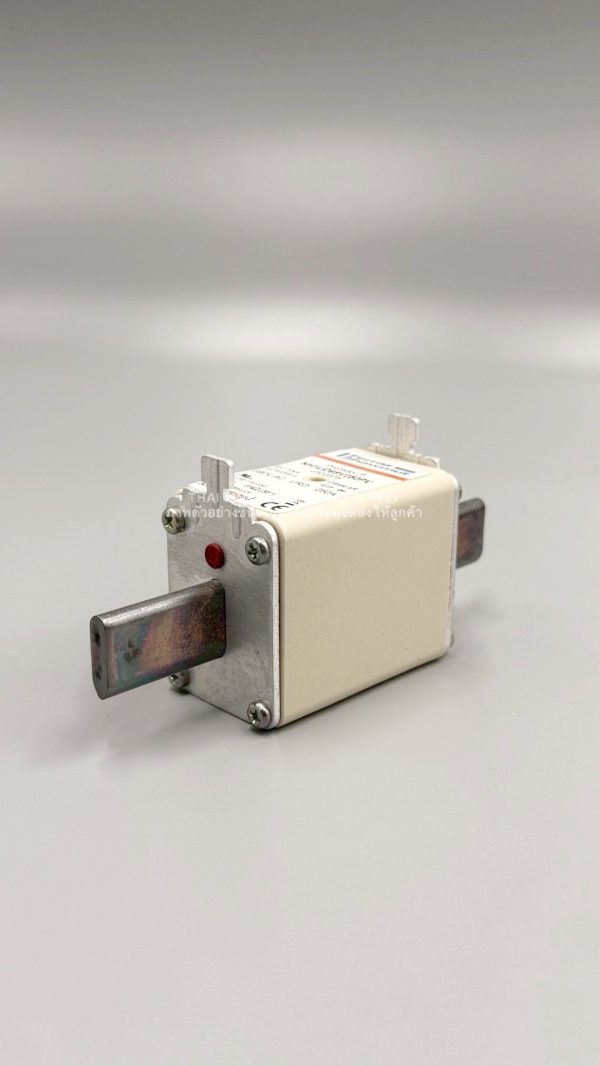

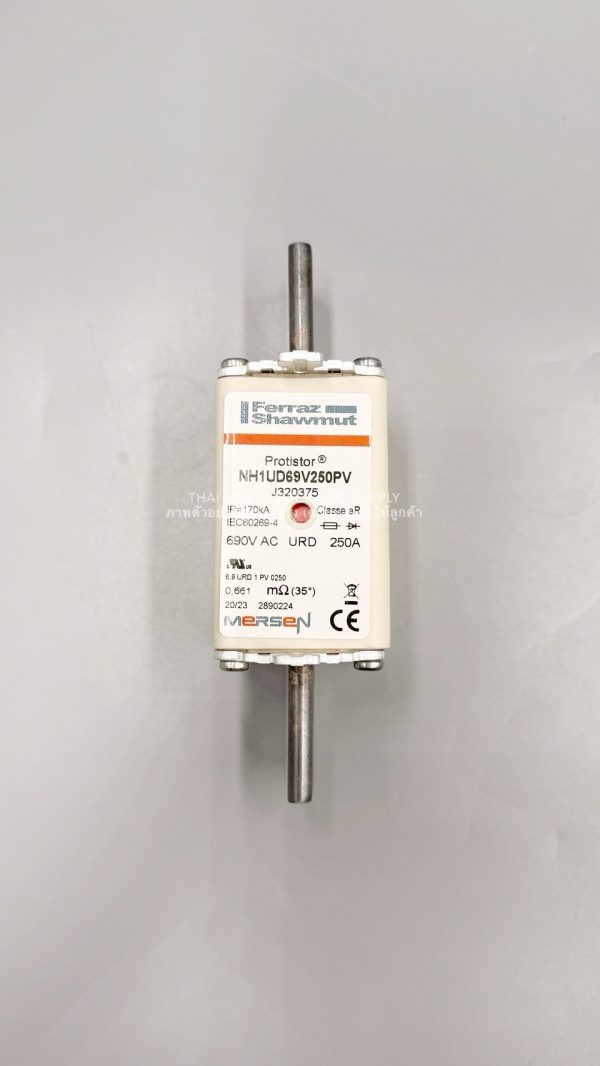

FERRAZ – Protistor NH1UD69V250PV

Manufactured:  Ferraz

Product:  ProtistorFERR

Catalogue No.:  NH1UD69V250PV



Square Body High-Speed Fuse Protistor NH Size 1 aR 690VAC IEC 700VAC UL 250A With Double indicator Plain Blades

The 690/700V Protistor fuse-links provide maximum flexibility in equipment design and ulitmate protection for today’s power conversion equipment. These NH style fuse-links are defined as per DIN 43620/00 for a worldwide acceptance into NH modular system fuse-holders, fuse switch disconnectors for direct installation. The Protistor have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, GTO’s and IGBT devices. Fuses are assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for lower and high interrupting rating level. All contact surfaces are silver plated abd all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operated a field mountable microswitch.



Technical Specifications

• Item Number :   J320375
• Catalogue No.:   NH1UD69V250PV
• Description:   Square Body High-Speed Fuse Protistor NH Size 1 aR 690VAC IEC 700VAC UL 250A With Double indicator Plain Blades
• EAN/UPC Code:   8430399015736
• Rated Voltage AC UL:   700 V
• Rated Voltage AC IEC:   690 V
• Amper Rating:  250 A
• AC or DC:   AC
• Speed/Characteristic:   aR
• Fuse Size:   NH1
• Mounting:   Clip
• Clearing I2t At Rated voltage:   25100 A²s
• Melting:   4690 A²s
• AC Max I.R./Breakig Capacity:   170 kA
• Indicator System:  Yes
• Indication System Type:   Doublr Indicator
• Connection / Termical Material:   Brass
• Connection Terminal Type:   Plain Blades
• Product Width:   40 mm.
• Product Length:    135 mm.
• Product Height:   70 mm.
• Product Weight:  1.26 kg.
• Prodict Group:   Semicon Protection Fuses
• Body/Insulating Material:   Ceramic
• Power Dissipation at Rated Current Value:   75 W
